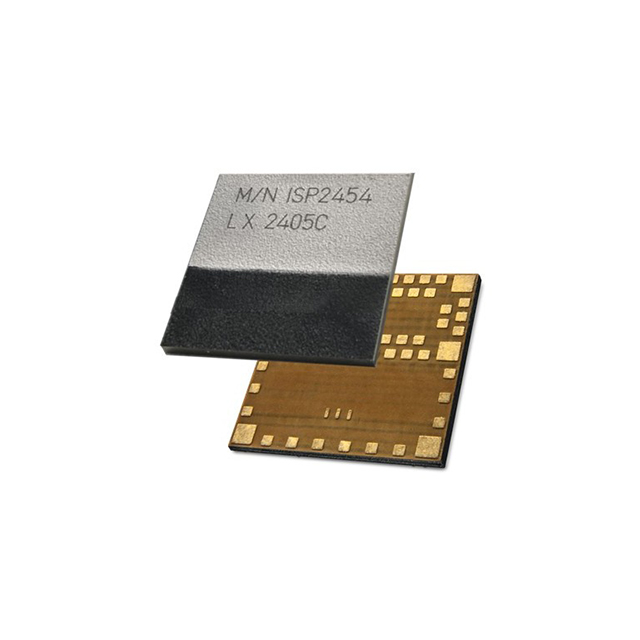

ISP2454-LX-RS
ActiveInsight SIP
BLUETOOTH 6.0 LOW ENERGY MODULE
ISP2454-LX-RS
ActiveInsight SIP
BLUETOOTH 6.0 LOW ENERGY MODULE
Description
General part information
ISP2454-LX-RS
BLUETOOTH 6.0 LOW ENERGY MODULE
Technical Specifications
Parameters and characteristics for this part
| Specification | ISP2454-LX-RS |
|---|---|
| Antenna Type | Chip, Integrated |
| Current - Receiving | 3.3 mA |
| Current - Transmitting (Max) | 3.7 mA |
| Current - Transmitting (Min) | 1.2 mA |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 1.48 MB, 256 kB |
| Memory Size (RAM) | 256 kB |
| Memory Size (RRAM) | 1.48 MB |
| Memory Type | RRAM, RAM |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 62-SMD Module |
| Power - Output | 8 dBm |
| Protocol | Bluetooth v6.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -98 dBm |
| Serial Interfaces | PWM, GPIO, I2S, PDM, SPI, UART, I2C |
| Utilized IC / Part | nRF54L15 |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.7 V |
