Description
General part information

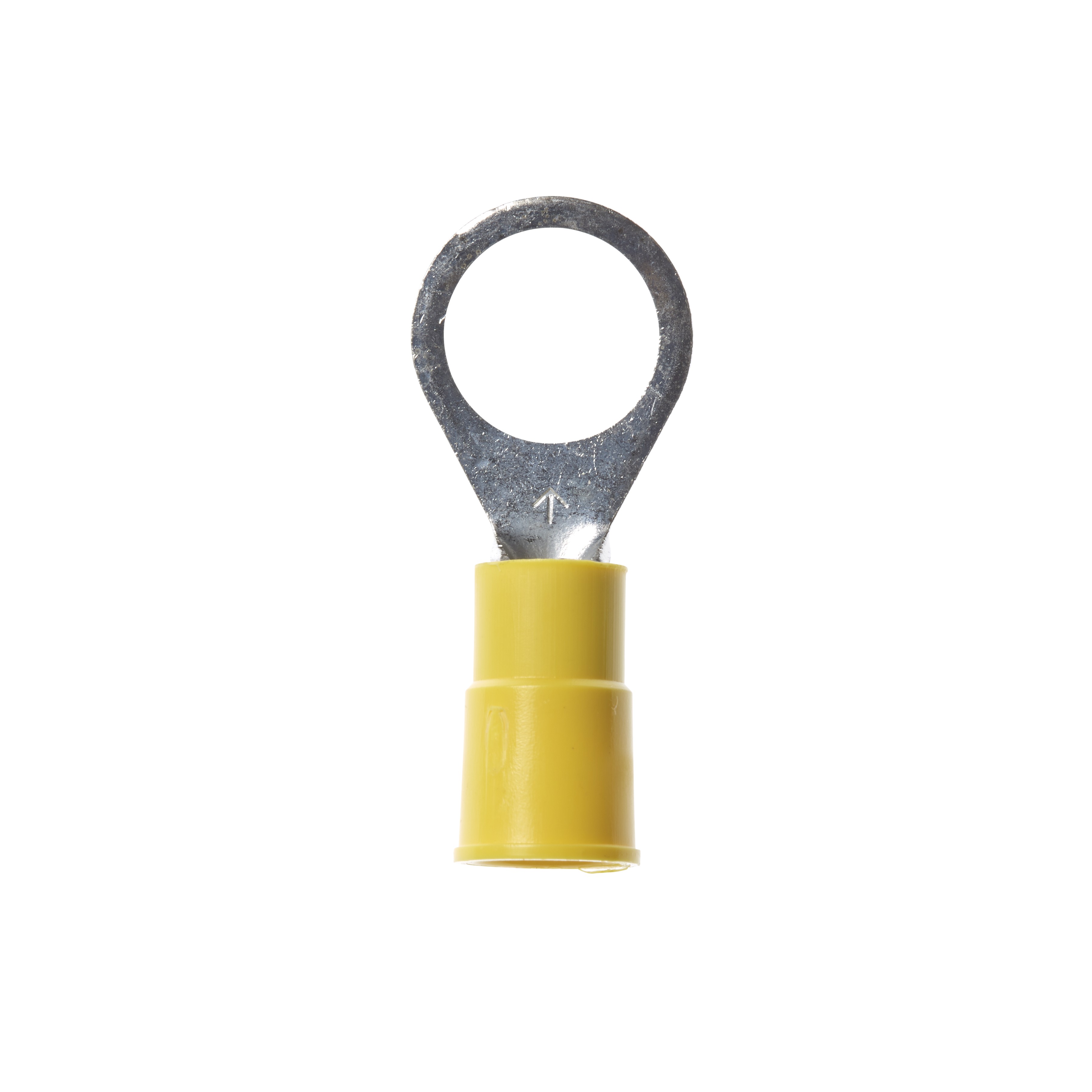

MVU10-38R/SX-BOTTLE
CONN RING CIRC 10-12AWG 3/8 50PC
Technical Specifications
Parameters and characteristics for this part
| Specification | MVU10-38R/SX-BOTTLE |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper, ETP |
| Insulation | Insulated |
| Length - Overall | 1.26 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.375 in |
| Stud/Tab Size | 3 Stud, 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.04 in |
| Width - Outer Edges | 0.54 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
