1-332434-0
ObsoleteTE Connectivity AMP Connectors
TERMINALS TERMINAL,PIDG PTFE R AU 22-20
1-332434-0
ObsoleteTE Connectivity AMP Connectors
TERMINALS TERMINAL,PIDG PTFE R AU 22-20
Description
General part information
1-332434-0

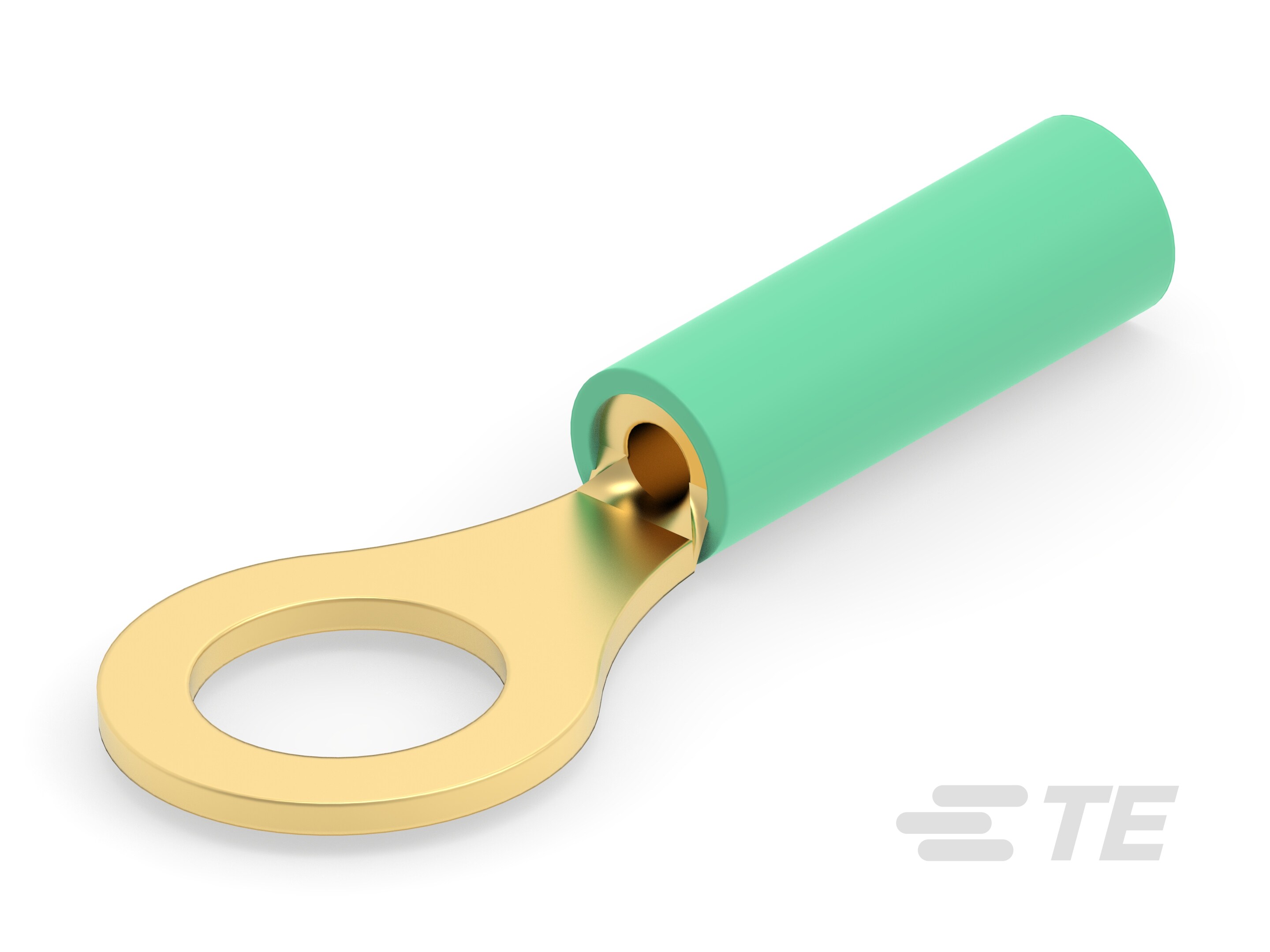

Closed Ring Tongue Terminal, 22 – 20 AWG, #10 Stud, 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Gold Plating, STRATO-THERM
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-332434-0 |
|---|---|
| Color | Green |
| Contact Finish | Gold |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.84 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.023 in |
| Width - Outer Edges | 0.312 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
