NSYS3D10625P
ActiveSCHNEIDER ELECTRIC
ENCLOSURE STL 39.37"L X 23.62"W
NSYS3D10625P
ActiveSCHNEIDER ELECTRIC
ENCLOSURE STL 39.37"L X 23.62"W
Description
General part information
NSYS3D10625P

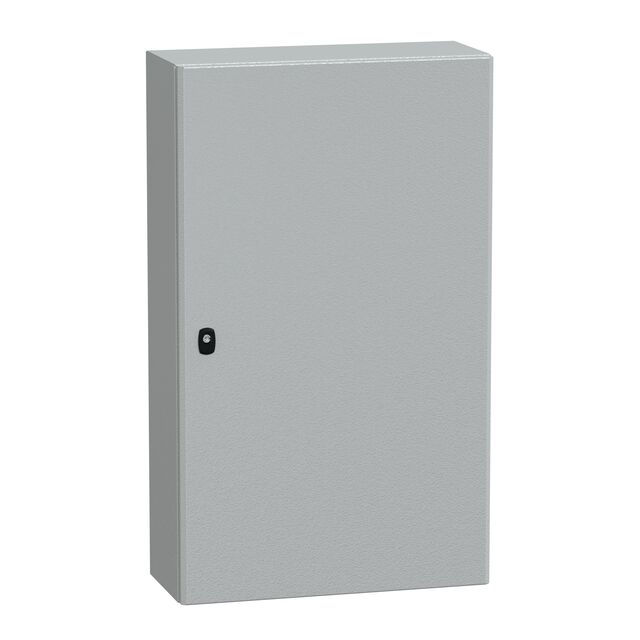

Enclosure Metal, Steel Light Gray Hinged Door 39.370" L x 23.622" W (1000.00mm x 600.00mm) X 9.843" (250.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYS3D10625P |
|---|---|
| Area (L x W) | 930 in² |
| Color | Light Gray |
| Container Type | Enclosure |
| Design | Hinged Door |
| Height | 9.843 in |
| Material | Metal, Steel |
| Ratings | IP66 |
| Size / Dimension Length | 39.37 in |
| Size / Dimension Width | 23.622 in |
