CA-085FNMSM036
ActivePasternack
CA.085 FORMABLE NM/SM 36""
CA-085FNMSM036
ActivePasternack
CA.085 FORMABLE NM/SM 36""
Description
General part information

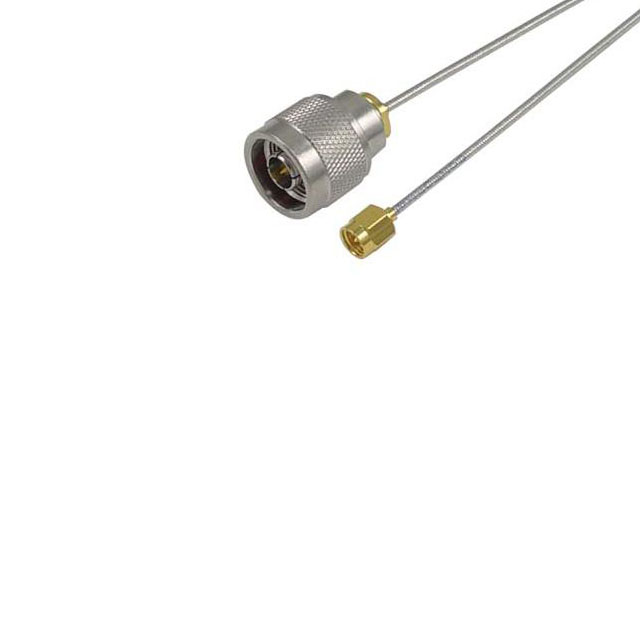

CA-085FNMSM036
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | CA-085FNMSM036 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.085 |
| Color | Silver |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
