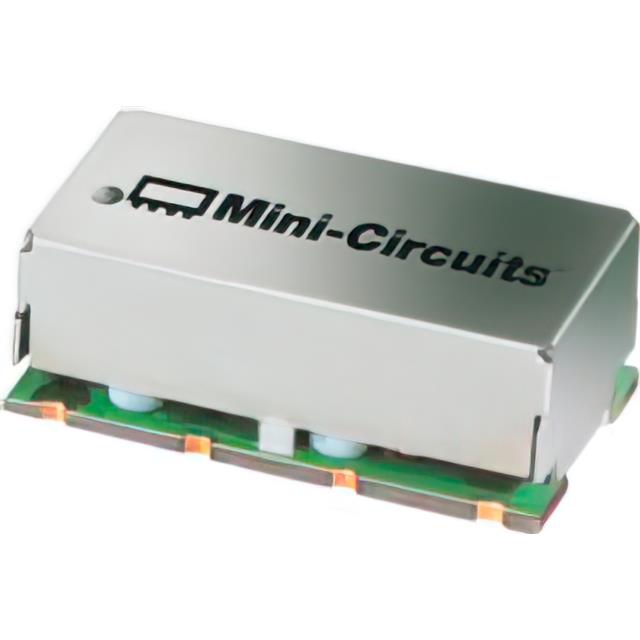

SXBP-29+
ActiveMini-Circuits
RF FILTER BAND PASS 29MHZ 8SMD
SXBP-29+
ActiveMini-Circuits
RF FILTER BAND PASS 29MHZ 8SMD
Description
General part information
SXBP-29+
29MHz Center Frequency Band Pass RF Filter (Radio Frequency) 11MHz Bandwidth 1.5dB 8-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SXBP-29+ |
|---|---|
| Bandwidth | 11 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 29 MHz |
| Height (Max) | 0.27 in |
| Insertion Loss | 1.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | No Lead, 8-SMD |
| Size / Dimension Length | 0.74 in |
| Size / Dimension Width | 0.44 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
