RPZ-0.5-R
ActiveNON ISOLATED POL DC/DC CONVERTER, SYNCHRONOUS BUCK, ITE & INDUSTRIAL, 2.5 W, 600 MV, 5.375 V
RPZ-0.5-R
ActiveNON ISOLATED POL DC/DC CONVERTER, SYNCHRONOUS BUCK, ITE & INDUSTRIAL, 2.5 W, 600 MV, 5.375 V
Description
General part information
RPZ-0.5-R

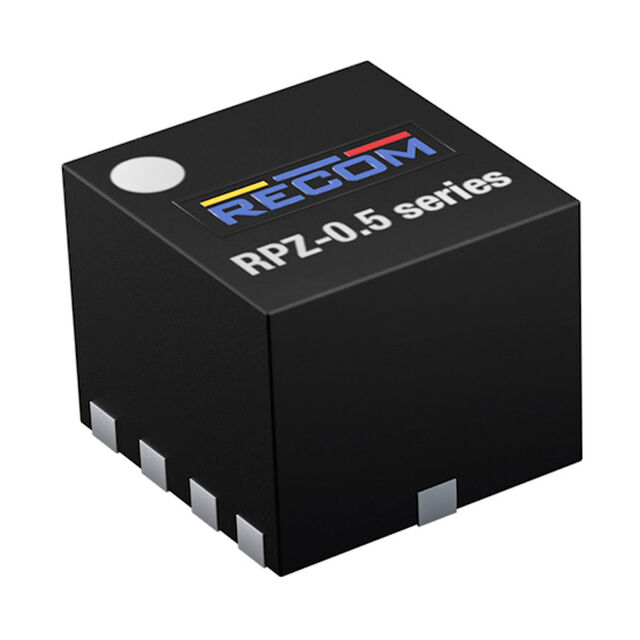

RPZ-0.5-R is a RPZ-0.5 series power module. RPZ-0.5 series is a synchronous buck converter with integrated inductor in a tiny 2.0mm x 2.0mm x 1.6mm thermally-enhanced QFN package. The input range is from 2.3 to 5.5VDC. The output voltage can be set with two resistors in the range from 0.6V up to 5.375V. The output current is up to 500mA and is fully protected against continuous short-circuits, output overcurrent, or over-temperature faults. Its high current and small size make the RPZ-0.5 ideal for imaging systems, distributed power architectures, optical modules, and portable battery-powered equipment in telecom as well as industrial applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | RPZ-0.5-R |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 500 mA |
| Efficiency | 88 % |
| Features | Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 10-PowerLFQFN Module |
| Package Length | 2 mm |
| Package Name | 10-QFN |
| Package Width | 2 mm |
| Power (Watts) | 2.7 W |
| Size / Dimension Height | 0.06 in |
| Size / Dimension Length | 0.08 in |
| Size / Dimension Width | 0.08 in |
| Type | Linear Regulator Replacement, Non-Isolated PoL Module |
| Voltage - Input (Max) | 5.5 V |
| Voltage - Input (Min) | 2.3 V |
| Voltage - Output 1 (Max) | 5.375 V |
| Voltage - Output 1 (Min) | 0.6 V |
