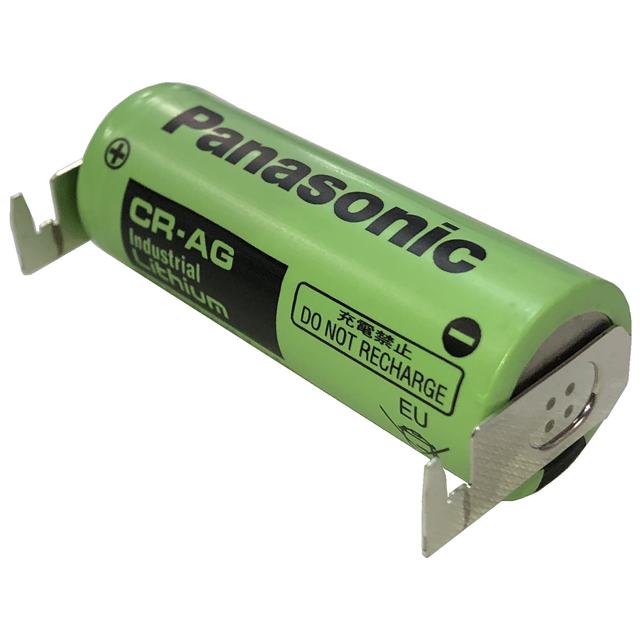

CR-AGDE27N

Active

Panasonic Industrial Automation Sales

BATTERY LITHIUM 3V CRAG

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

BATTERY LITHIUM 3V CRAG

Technical Specifications

Parameters and characteristics for this part

Specification	CR-AGDE27N

Battery Cell Size	CR-AG
Battery Chemistry	Lithium
Capacity	2.4 Ah
Discharge Rate	2.5 mA
Shelf Life Start	Date of Manufacture
Shipping Info	Due to restrictions, only ground shipment is allowed.
Size / Dimension [diameter]	0.67 in
Size / Dimension [diameter]	17 mm
Size / Dimension [z]	45.5 mm
Size / Dimension [z]	1.79 "
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	-4 °F
Storage/Refrigeration Temperature [Min]	-20 °C
Termination Style	Solder Tab
Voltage - Rated	3 VDC

CR LITHIUM CYLINDRICAL 3V

Part	Shipping Info	Battery Chemistry	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Battery Cell Size	Capacity	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Discharge Rate	Shelf Life Start	Termination Style	Voltage - Rated
Panasonic Industrial Automation Sales CR-AGDE5N	Due to restrictions only ground shipment is allowed.	Lithium	35 °C	35 °C	-4 °F	-20 °C	CR-AG	2.4 Ah	45.5 mm	0.67 in	1.79 "	17 mm	2.5 mA	Date of Manufacture	Solder Tab	3 VDC
Panasonic Industrial Automation Sales CR-AGDE27N	Due to restrictions only ground shipment is allowed.	Lithium	35 °C	35 °C	-4 °F	-20 °C	CR-AG	2.4 Ah	45.5 mm	0.67 in	1.79 "	17 mm	2.5 mA	Date of Manufacture	Solder Tab	3 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	240	$ 5.33

General part information

CR LITHIUM CYLINDRICAL 3V
