407F39E022M1184
ActiveCTS-Frequency Controls

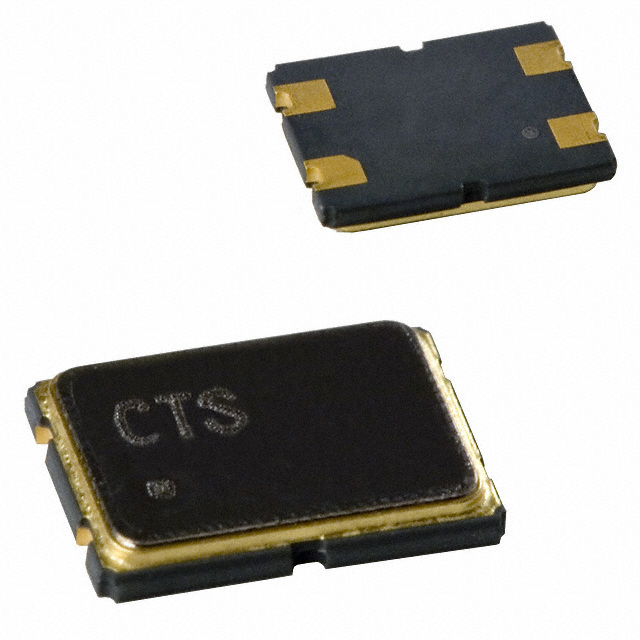

CRYSTAL 22.1184MHZ 20PF SMD
407F39E022M1184
ActiveCTS-Frequency Controls
CRYSTAL 22.1184MHZ 20PF SMD
Description
General part information
407F39E022M1184
22.1184 MHz ±30ppm Crystal 20pF 40 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | 407F39E022M1184 |
|---|---|
| ESR (Equivalent Series Resistance) | 40 Ohm |
| Frequency | 22.1184 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.051 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 7 mm |
| Package Name | 4-SMD |
| Package Width | 5 mm |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | MHz Crystal |
