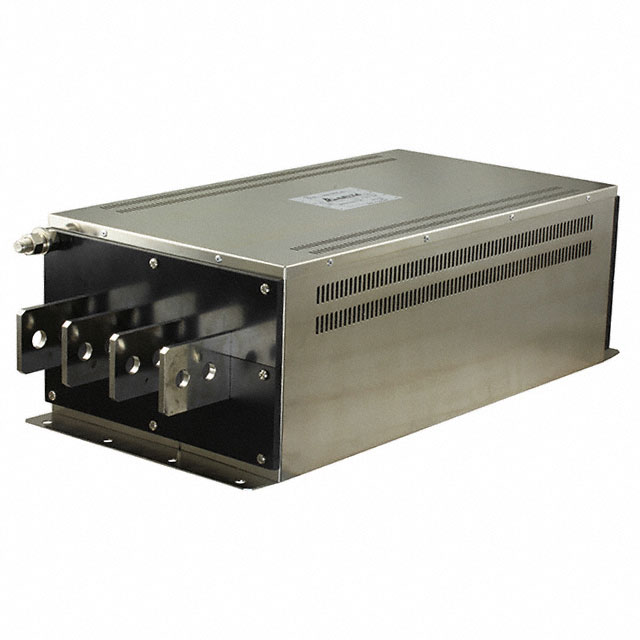

600TDSS84
ActiveDelta Electronics
LINE FILTER 480VAC 600A CHASSIS
600TDSS84
ActiveDelta Electronics
LINE FILTER 480VAC 600A CHASSIS
Description
General part information
600TDSS84
Three Phase (Delta) EMC/EMI Line Filter 600 A 480V 50/60Hz Single Stage Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | 600TDSS84 |
|---|---|
| Applications | General Purpose |
| Configuration | Single Stage |
| Current | 600 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Inductance | 3 µH |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 480 V |
