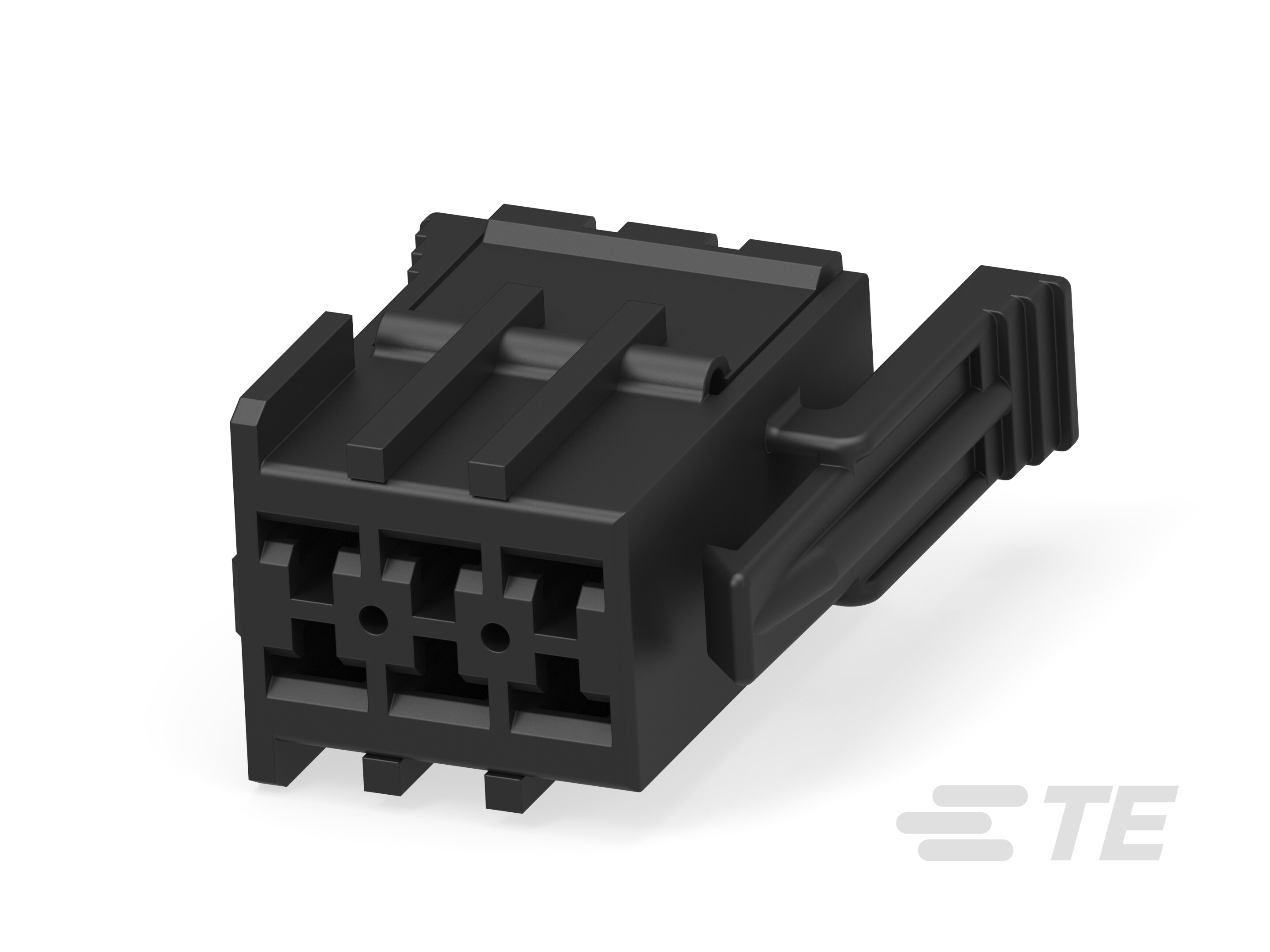

Specification	929504-2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	2
Pitch	0.197 in
Row Spacing	0.22 in

Junior Power Timer Series

...

Part	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Pin or Socket	Contact Termination	Fastening Type	Insulation Material	Number of Rows	Mounting Type	Row Spacing	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Color	Pitch	Contact Type	Connector Type	Note	Type	Contact Finish Thickness	Shrouding	Row Spacing - Mating	Contact Finish - Mating	Termination	Insulation Color	Contact Finish - Post	Contact Shape	Number of Positions Loaded	Style	Pitch - Mating	Features	Contact Material	Applications
TE Connectivity AMP Connectors 964314-1	13 AWG	11 AWG	Tin	Tab	Crimp
TE Connectivity AMP Connectors 1-967623-3					Crimp	Latch Lock	Glass Filled Polybutylene Terephthalate (PBT)	3	Free Hanging (In-Line)	0.217 in	100 °C	-30 °C	15	Yellow	0.197 in	Female Socket	Receptacle
TE Connectivity AMP Connectors 1-929504-7					Crimp		Polybutylene Terephthalate (PBT)	2	Free Hanging (In-Line)	0.22 in			22	Natural	0.197 in	Female Socket	Receptacle	Contacts Not Included
TE Connectivity AMP Connectors 1-965640-7					Crimp	Latch Holder	Glass Filled Polybutylene Terephthalate (PBT)	3	Free Hanging (In-Line)	0.217 in	100 °C	-30 °C	6	Red	0.197 in	Female Socket	Housing for Female Insert
TE Connectivity AMP Connectors 2-963736-1	14 AWG	12 AWG	Tin	Blade	Crimp														Stamped	39.4 Ąin
TE Connectivity AMP Connectors 1718049-1
TE Connectivity AMP Connectors 1-964449-1					Crimp		Polybutylene Terephthalate (PBT)	2	Free Hanging (In-Line)	0.236 in			16	Black	0.197 in	Tab	Plug
TE Connectivity AMP Connectors 1-927772-1	24 AWG	19.5 AWG	Gold	Socket	Crimp														Power	31.5 µin
TE Connectivity AMP Connectors 964408-1					Crimp	Latch Lock	Nylon Polyamide (PA)	2	Free Hanging (In-Line)	0.197 in			8	Gray	0.236 in	Female Socket	Receptacle
TE Connectivity AMP Connectors 827254-1						Push-Pull	Glass Filled Nylon 6/6 Polyamide (PA66)	2					35			Tab	Plug				Shrouded - 4 Wall	0.197 in	Tin	Solder	Black	Tin	Rectangular	All	Board Board or Cable	0.197 in	Mounting Flange	Phosphor Bronze	Automotive General Purpose
