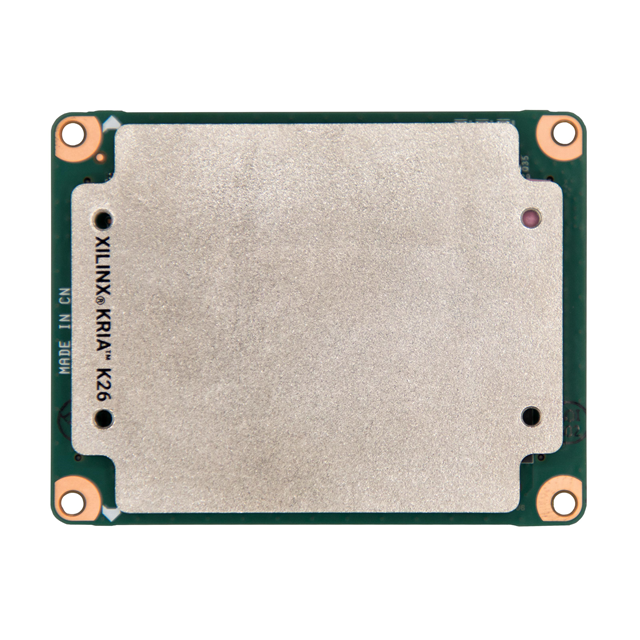

SM-K26-XCL2GC-ED
ObsoleteAMD / Xilinx
SOM K26C VISION ZYNQ MPSOC ED
SM-K26-XCL2GC-ED
ObsoleteAMD / Xilinx
SOM K26C VISION ZYNQ MPSOC ED
Description
General part information
SM-K26-XCL2GC-ED
Zynq® UltraScale+™ Kria™ Embedded Module ARM® Cortex®-A53 Arm® Cortex®-R5F 533MHz, 1.333GHz 4GB 16GB eMMC, 64MB QSPI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM-K26-XCL2GC-ED |
|---|---|
| Co-Processor | ARM® Cortex®-R5F |
| Connector Pin Count | 240 Pin |
| Connector Pins per Row | 240 |
| Connector Quantity | 2 |
| Connector Rows | 2 |
| Connector Type | 2 x Pin |
| Core Processor | ARM® Cortex®-A53 |
| Flash Size (eMMC) | 16 GB |
| Flash Size (QSPI) | 64 MB |
| Flash Type | QSPI, eMMC |
| Module/Board Type | FPGA Core |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | 0 °C |
| RAM Size | 4 GB |
| Size / Dimension Length | 3.03 in |
| Size / Dimension Width | 2.36 in |
| Speed | 533 MHz, 1.333 GHz |
