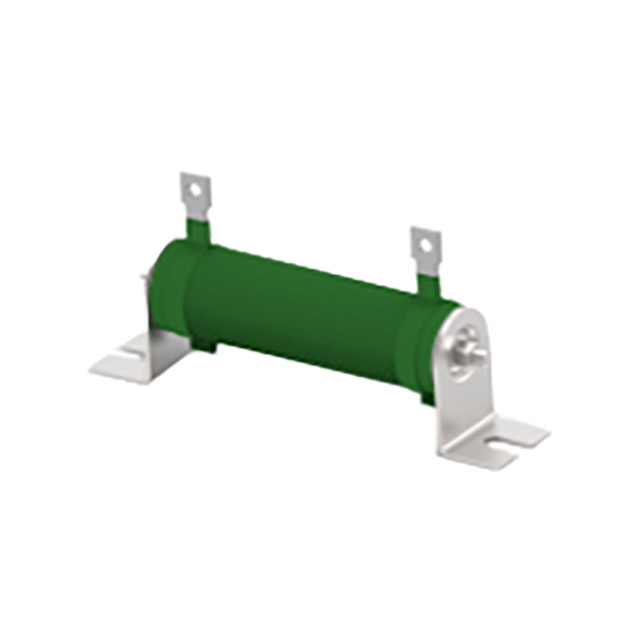

Specification	TE100B2K2J

Composition	Wirewound
Features	Safety, Flame Proof
Height - Seated (Max)	2.52 in
Lead Style	Solder Lugs
Mounting Feature	Brackets
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	Tubular, Radial
Power (Watts)	100 W
Resistance	2.2 kOhm
Size / Dimension Diameter	1.102 in
Size / Dimension Length	7.165 in
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

CGS TE Series

...

Part	Package / Case	Composition	Resistance	Tolerance	Coating	Housing Type	Lead Style	Size / Dimension Diameter	Size / Dimension Length	Mounting Feature	Temperature Coefficient	Features	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)
TE Connectivity AMP Connectors TE300B1R0J	Radial Tubular	Wirewound	1 Ohm	5 %	Silicone Coated	Silicone Coated	Solder Lugs	1.575 in	11.102 in	Brackets	440 ppm/°C	Flame Proof Safety	155 °C	-55 °C	300 W
TE Connectivity AMP Connectors TE200B1R5J	Radial Tubular	Wirewound	1.5 Ohm	5 %	Silicone Coated	Silicone Coated	Solder Lugs	1.575 in	7.677 in	Brackets	440 ppm/°C	Flame Proof Safety	155 °C	-55 °C	200 W
TE Connectivity AMP Connectors TE50B1R8J	Radial Tubular	Wirewound	1.8 Ohm	5 %	Silicone Coated	Silicone Coated	Solder Lugs	1.102 in	4.016 in	Brackets	440 ppm/°C	Flame Proof Safety	155 °C	-55 °C	50 W
TE Connectivity AMP Connectors TE60B680RJ	Radial Tubular	Wirewound	680 Ohm	5 %	Silicone Coated	Silicone Coated	Solder Lugs	1.102 in	4.016 in	Brackets	440 ppm/°C	Flame Proof Safety	155 °C	-55 °C	60 W
TE Connectivity AMP Connectors TE1000B1R2J	Radial Tubular	Wirewound	1.2 Ohm	5 %	Silicone Coated	Silicone Coated	Solder Lugs	2.362 in	11.811 in	Brackets	440 ppm/°C	Flame Proof Safety	155 °C	-55 °C	1 kW
TE Connectivity AMP Connectors TE100B1K5J	Radial Tubular	Wirewound	1.5 kOhms	5 %	Silicone Coated	Silicone Coated	Solder Lugs	1.102 in	7.165 in	Brackets	440 ppm/°C	Flame Proof Safety	155 °C	-55 °C	100 W
TE Connectivity AMP Connectors TE120B18RJ	Radial Tubular	Wirewound	18 Ohm	5 %	Silicone Coated	Silicone Coated	Solder Lugs	1.102 in	7.165 in	Brackets	440 ppm/°C	Flame Proof Safety	155 °C	-55 °C	120 W
TE Connectivity AMP Connectors TE2500B47RJ	Radial Tubular	Wirewound	47 Ohms	5 %	Silicone Coated	Silicone Coated	Solder Lugs	2.362 in	23.622 in	Brackets	440 ppm/°C	Flame Proof Safety	155 °C	-55 °C	2500 W
TE Connectivity AMP Connectors TE600B2R2J	Radial Tubular	Wirewound	2.2 Ohm	5 %	Silicone Coated	Silicone Coated	Solder Lugs	1.575 in	13.583 in	Brackets	440 ppm/°C	Flame Proof Safety	155 °C	-55 °C	600 W
TE Connectivity AMP Connectors TE200B180RJ	Radial Tubular	Wirewound	180 Ohm	5 %	Silicone Coated	Silicone Coated	Solder Lugs	1.575 in	7.677 in	Brackets	440 ppm/°C	Flame Proof Safety	155 °C	-55 °C	200 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

High Power Wire wound Resistor Type TE Series

ENG_CD_1879444_BB.pdf

Datasheet
