1217080-1
ActiveTE Connectivity AMP Connectors

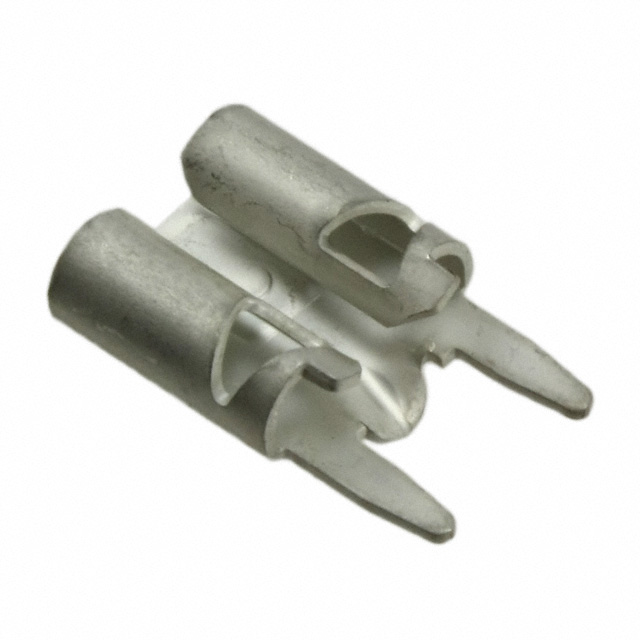

CONN QC RCPT 0.205/0.250 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217080-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 0.205/0.250 SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217080-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.48 in |
| Length - Overall [x] | 12.19 mm |
| Mounting Type | Through Hole |
| Tab Length | 0.33 in |
| Tab Length | 8.38 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 0.205 in, 0.25 in |
| Tab Width | 5.21 mm, 6.35 mm |
| Terminal Type | Standard |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.32 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.24 | |||
| 100 | $ 0.22 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| 2500 | $ 0.17 | |||
1217080 Series
CONN QC RCPT 0.205/0.250 SOLDER
| Part | Gender | Insulation | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Mounting Type | Contact Finish | Contact Material | Tab Width | Tab Width | Termination | Terminal Type | Tab Length | Tab Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217080-1 | Female | Non-Insulated | 0.48 in | 12.19 mm | 0.032 in | 0.81 mm | Through Hole | Tin | Brass | 0.205 in, 0.25 in | 5.21 mm, 6.35 mm | Solder | Standard | 0.33 in | 8.38 mm |
Description
General part information
1217080 Series
0.205" (5.21mm), 0.250" (6.35mm) Quick Connect Female Solder Connector Non-Insulated
