Description

General part information

ANT-W63-WRT-MHF4-150

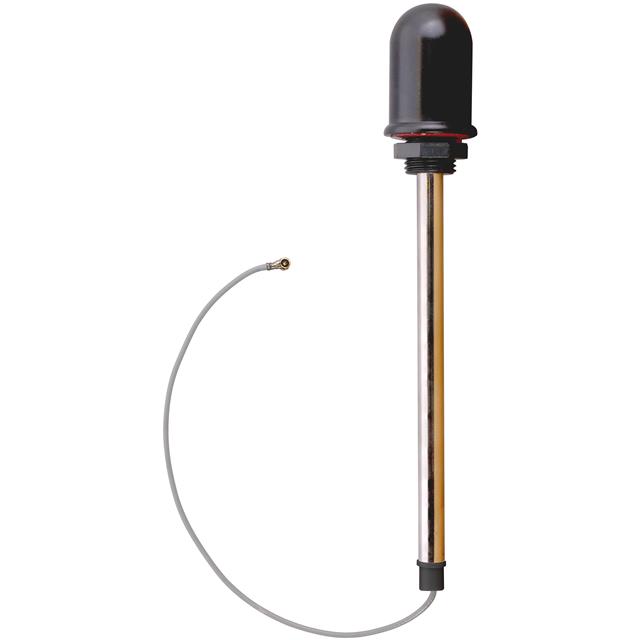

Dome/Puck Antenna, Triple Band, Wi-Fi, External Mount, Stud/Screw/Lug Mount, MHF4, Omnidirectional, Single Port, > 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationANT-W63-WRT-MHF4-150
Antenna TypeDome
ApplicationsWLAN, Wi-Fi, Zigbee™, Bluetooth, ISM
FeaturesCable, 150mm
Frequency (Center/Band)5.5GHz, 6.525GHz, 2.4425GHz
Frequency (Center/Band) - 12.4425 GHz
Frequency (Center/Band) - 25.5 GHz
Frequency (Center/Band) - 36.525 GHz
Frequency GroupSHF, UHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (SHF)4 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Band 1) Maximum2.485 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.85 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Frequency Range (Band 3) Maximum7.125 GHz
Frequency Range (Band 3) Minimum5.925 GHz
Gain4.5 dBi, 6.4 dBi
Height (Max)1.063 in
Mounting TypePanel Mount
Number of Bands3
Power - Max5 VA
RF Family/Standard802.15.4, Bluetooth, General ISM, WiFi
TerminationMHF4
VSWR1.4, 1.5, 2.2
