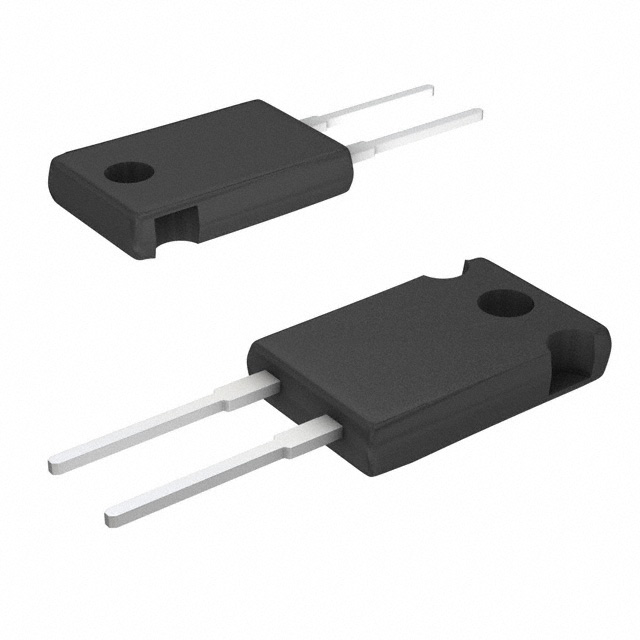

MP2060-0.020-1%
ActiveCaddock Electronics Inc.
RES 0.02 OHM 1% 60W TO220
MP2060-0.020-1%
ActiveCaddock Electronics Inc.
RES 0.02 OHM 1% 60W TO220
Description
General part information
MP2060-0.020-1%
20 mOhms ±1% 60W Through Hole Resistor TO-220-2 Full Pack Current Sense, Moisture Resistant, Non-Inductive, Pulse Withstanding Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MP2060-0.020-1% |
|---|---|
| Composition | Thick Film |
| Features | Pulse Withstanding, Non-Inductive, Current Sense, Moisture Resistant |
| Height - Seated (Max) | 16.51 mm |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-220-2 Full Pack |
| Package Name | TO-220 |
| Power (Watts) | 60 W |
| Resistance | 20 mOhms |
| Size / Dimension Length | 0.41 in |
| Size / Dimension Width | 0.175 in |
| Temperature Coefficient (Highest) | 200 ppm/°C |
| Temperature Coefficient (Lowest) | 0 ppm/°C |
| Tolerance | 1 % |
