ActiveTE Connectivity AMP Connectors
20POS,TAB0.5X0.4,HDR ASSY,90 DEG,SMD
2272897-1
ActiveTE Connectivity AMP Connectors
20POS,TAB0.5X0.4,HDR ASSY,90 DEG,SMD
Description
General part information
2272897-1

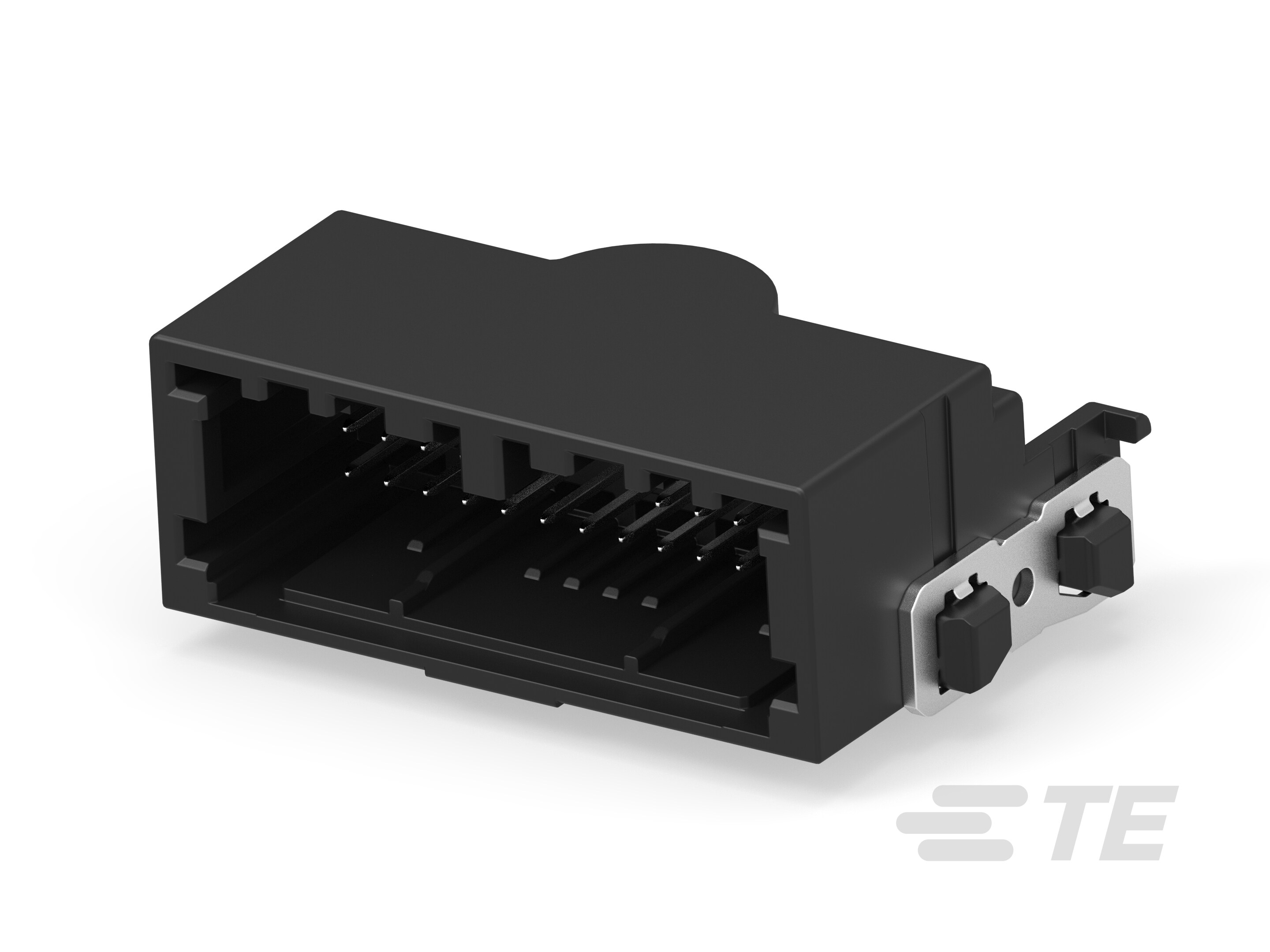

Horizontal, Wire-to-Board, 20 Position, 2 Rows, 1.8mm Centerline, Tin (Sn), Printed Circuit Board, Black, Generation 50
Technical Specifications
Parameters and characteristics for this part
| Specification | 2272897-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide, Solder Retention |
| Insulation Color | Black |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.071 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 14 VDC |
