CA-TMNFA004
ActivePasternack
CACA195 TNC-M / TYPE-N F 4FT
CA-TMNFA004
ActivePasternack
CACA195 TNC-M / TYPE-N F 4FT
Description
General part information
CA-TMNFA004

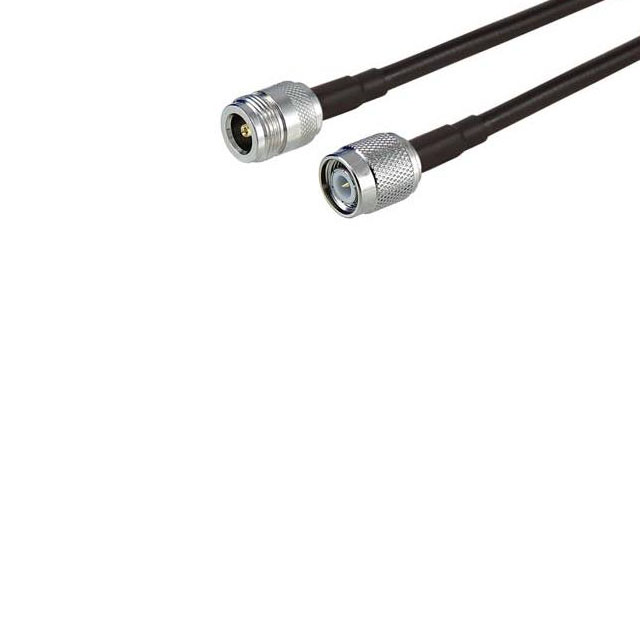

Cable Assembly Coaxial N-Type to TNC LMR 195 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | CA-TMNFA004 |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 195 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Length | 48 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type, TNC |
