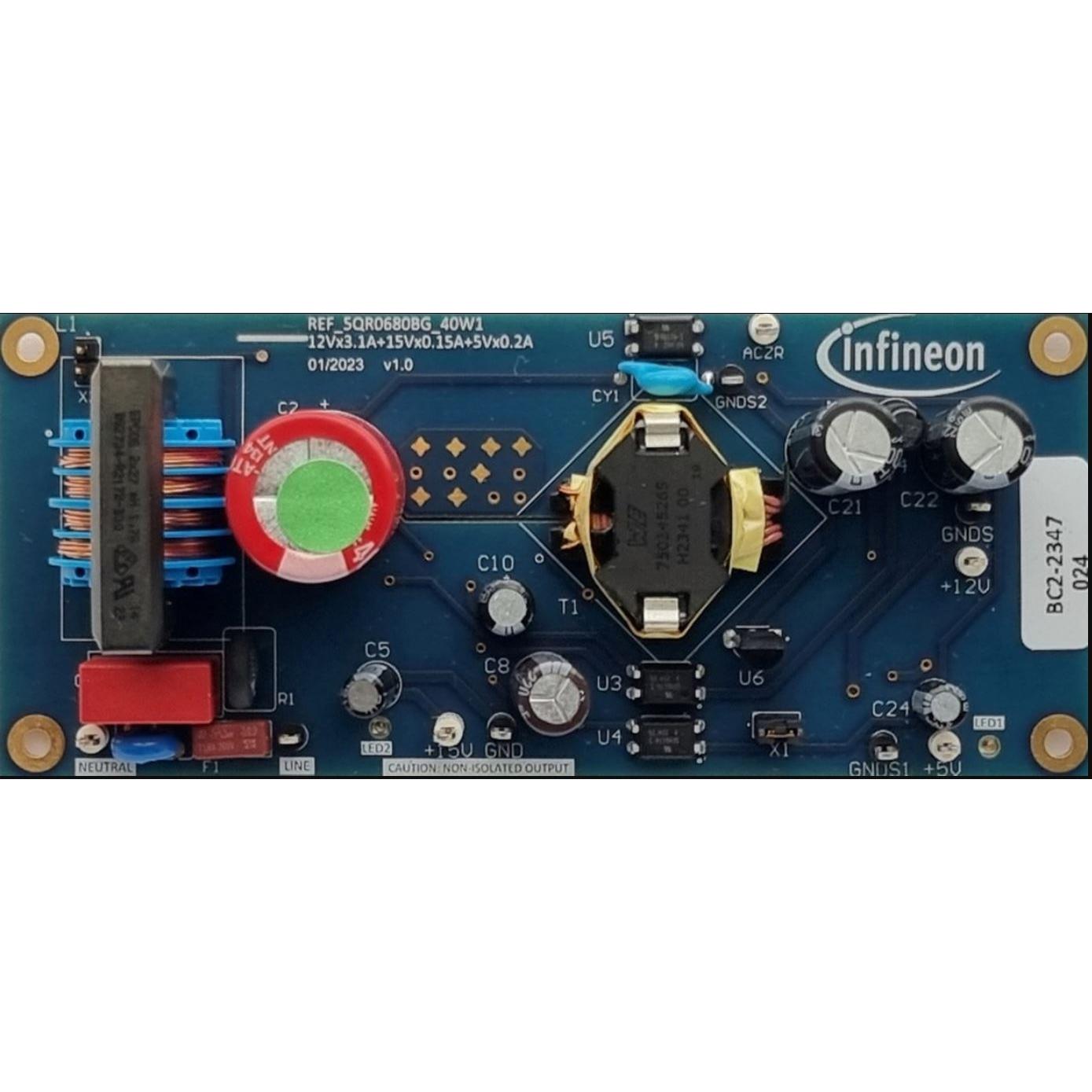

REF5QR0680BG40W1TOBO1
40 W auxiliary SMPS for refrigerator with the fifth-generation Infineon Quasi-Resonant (QR) CoolSET™ ICE5QR0680BG designed with a universal input and three outputs (isolated 12 V/3.1 A, 5 V/0.2 A and non-isolated 15 V/0.15 A) as typically employed in most home appliances
Technical Specifications
Parameters and characteristics for this part
| Specification | REF5QR0680BG40W1TOBO1 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output (Value 1) | 3.1 A |
| Current - Output (Value 2) | 200 mA |
| Current - Output (Value 3) | 150 mA |
| Isolated Output Count | 3 |
| Main Purpose | AC/DC Converter |
| Output Type | Isolated |
| Regulator Topology | Buck, Resonant |
| Supplied Contents | Board(s) |
| Total Output Count | 3 |
| Utilized IC / Part | ICE5QR0680BG |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output | 15 V, 12 V, 5 VDC |
