Description
General part information

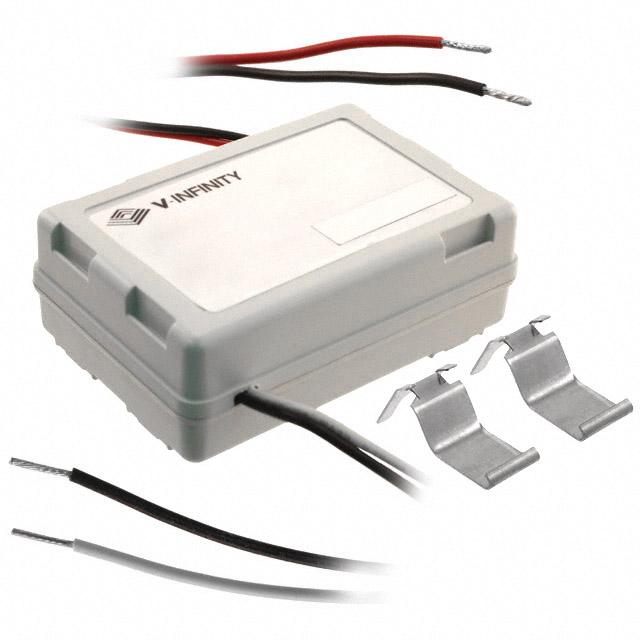

VLED15-120-1000
1A 10 ~ 16V Constant Current LED Driver AC DC Converter Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | VLED15-120-1000 |
|---|---|
| Approval Agency | UL, CE, ENEC |
| Current - Output (Max) | 1 A |
| Dimming | ELV, TRIAC |
| Features | OCP, SCP, OTP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 16 W |
| Size / Dimension Height | 1.1 in |
| Size / Dimension Length | 3.21 in |
| Size / Dimension Width | 2.21 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) | 135 VAC |
| Voltage - Input (Min) | 90 VAC |
| Voltage - Output (Max) | 16 V |
| Voltage - Output (Min) | 10 V |
