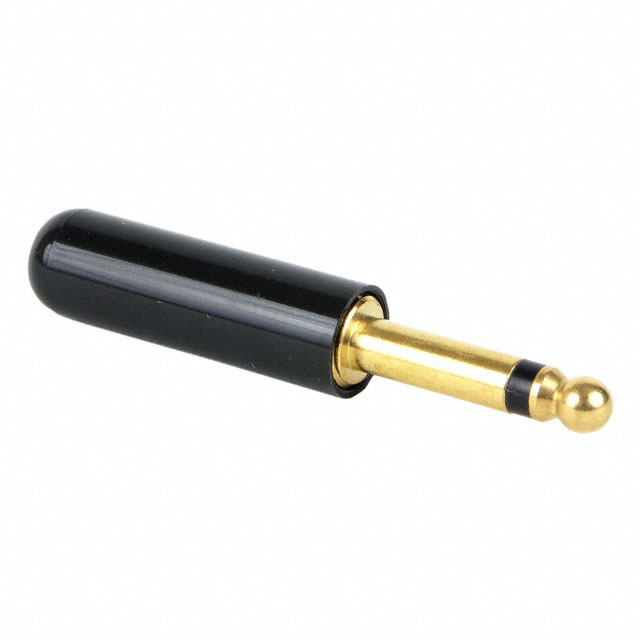

440X
ActiveSWITCHCRAFT/CONXALL
CONN PLUG MONO 6.35MM 2COND
440X
ActiveSWITCHCRAFT/CONXALL
CONN PLUG MONO 6.35MM 2COND
Description
General part information
440X
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | 440X |
|---|---|
| Actual Diameter | 0.25 in |
| Body Color | Black, Gold |
| Cable Opening | 0.281 in |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Features | Internal Interlock |
| Gender | Male |
| Housing Material | Thermoplastic |
| Includes | Handle, Screws, Connector |
| Includes Total Count | 4 pcs |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 1.218 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Shielding | Shielded |
| Signal Lines | Mono |
| Termination | Screw |
