P1CA-SAMSAM-085CJ-5

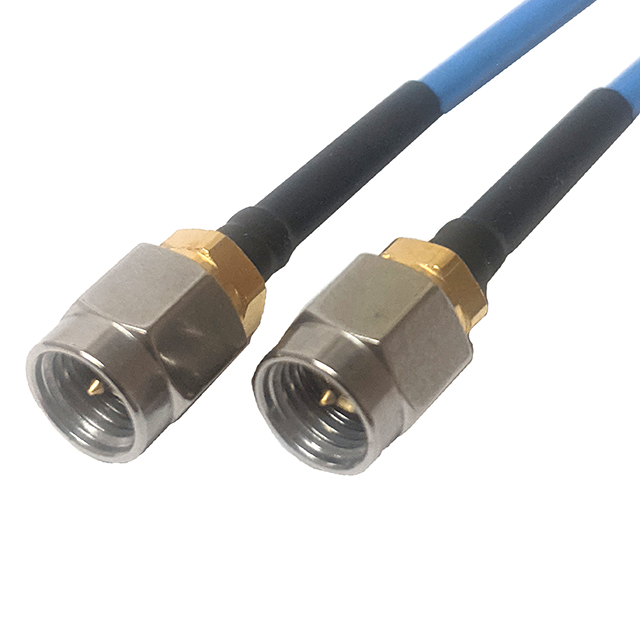

Cable Assembly Coaxial SMA to SMA 0.085" Flexible Cable 5.000" (127.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | P1CA-SAMSAM-085CJ-5 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.085 " |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 0.085 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.085 |
| Frequency - Max | 26.5 GHz |
| Length | 5 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -85 °C |
| Style | SMA |
