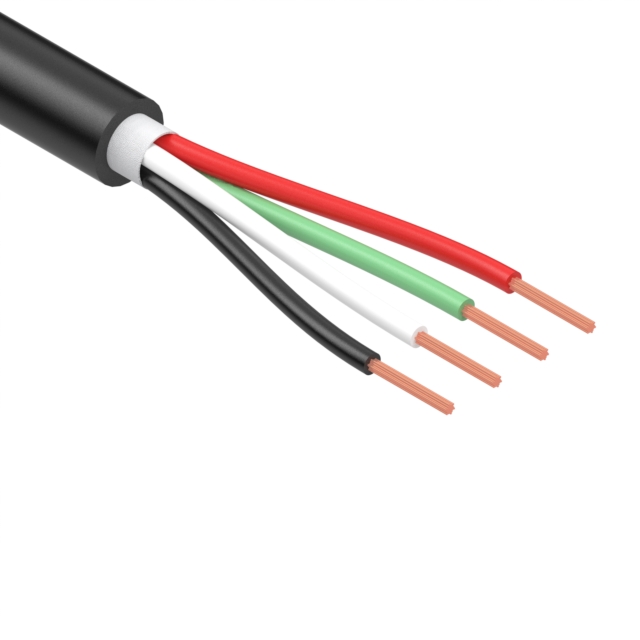

Specification	30-03407

Cable Type	Conductor, Multi
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Conductor Strand Count	26
Conductor Strand Diameter	0.0039 in
Jacket (Insulation) Diameter	0.173 in
Jacket (Insulation) Material	Thermoplastic Polyurethane (TPU)
Jacket (Insulation) Thickness	0.0299 in
Jacket Color	Black
Length	Enter Number of Meters in Order Quantity
Length	502 ft
Number of Conductors	4
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Ratings	20280, Style, UL
Voltage	300 V
Wire Gauge	24 AWG
