6563408304F

Active

DIALIGHT

1/2" DOM BL 37.5VDC W/TERM

Search across all available documentation for this part.

Active

DIALIGHT

1/2" DOM BL 37.5VDC W/TERM

Technical Specifications

Parameters and characteristics commom to parts in this series

1/2" DOM BL 37.5VDC W/TERM

Part	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Ingress Protection	Ratings	Lamp Color	Panel Cutout Shape	Millicandela Rating	Type	Termination Style	Voltage	Current	Lens Transparency	Lens Style
DIALIGHT 6563408304F	Blue	12.7 mm	0.5 in	IP66/IP67, NEMA 4X	DC	Blue	Round	220 mcd	LED	Quick Connect	37.5 V	8.5 mA	Clear	Round with Domed Top
DIALIGHT 6563408303F	Blue	12.7 mm	0.5 in	IP66/IP67, NEMA 4X	DC	Blue	Round	220 mcd	LED	Wire Leads - 5.84" (148.21mm)	37.5 V	8.5 mA	Clear	Round with Domed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	57	$ 12.85

General part information

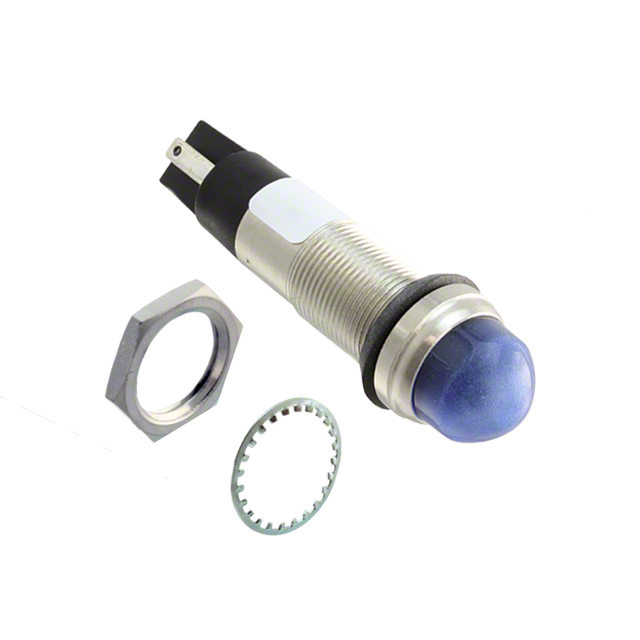

LED Panel Indicator Blue Clear 37.5V 8.5mA Quick Connect
