Specification	2195640032

Color	Black
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Features	Board Guide
Material - Insulation	LCP, Liquid Crystal Polymer
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Rows	1
Termination	Press-Fit

219564 Series

EXTreme Guardian HD Right-Angle Receptacle Assembly without Guide Receivers, 5 Power Circuits

Part	Contact Material	Contact Finish Thickness	Contact Finish	Fastening Type	Material - Insulation	Number of Rows	Termination	Color	Number of Positions	Mounting Type	Connector Type	Features
Molex 2195640005	Copper Alloy	30 µin	Gold	Push-Pull	LCP Liquid Crystal Polymer	1	Press-Fit	Black	5	Right Angle Through Hole	Female Blade Sockets Receptacle	Board Guide

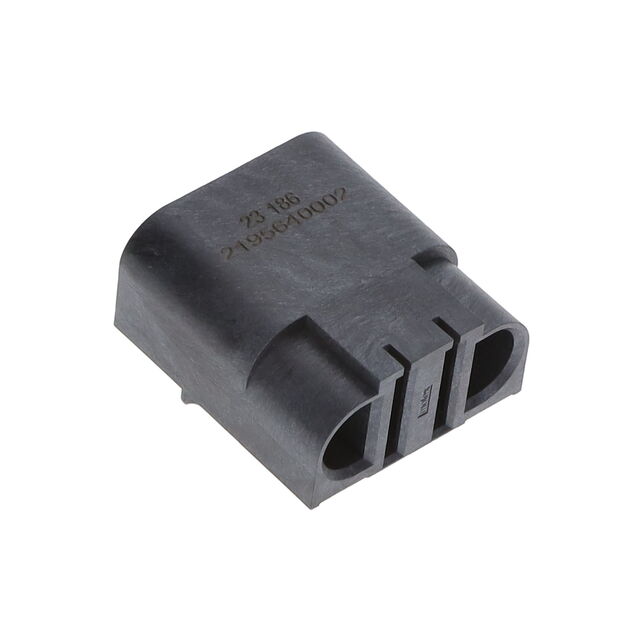

Molex 2195640002	Copper Alloy	30 µin	Gold	Push-Pull	LCP Liquid Crystal Polymer	1	Press-Fit	Black	2	Right Angle Through Hole	Female Blade Sockets Receptacle	Board Guide

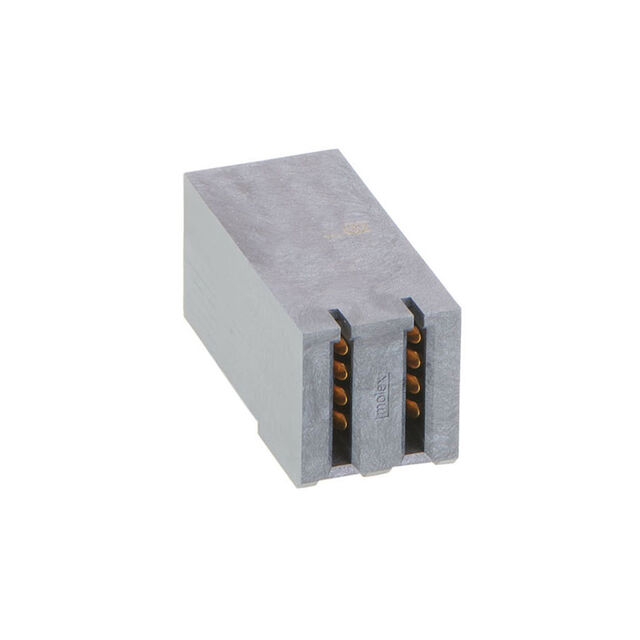

Molex 2195640031	Copper Alloy	30 µin	Gold	Push-Pull	LCP Liquid Crystal Polymer	1	Press-Fit	Black	1	Right Angle Through Hole	Female Blade Sockets Receptacle	Board Guide
Molex 2195640008	Copper Alloy	30 µin	Gold	Push-Pull	LCP Liquid Crystal Polymer	1	Press-Fit	Black	8	Right Angle Through Hole	Female Blade Sockets Receptacle	Board Guide

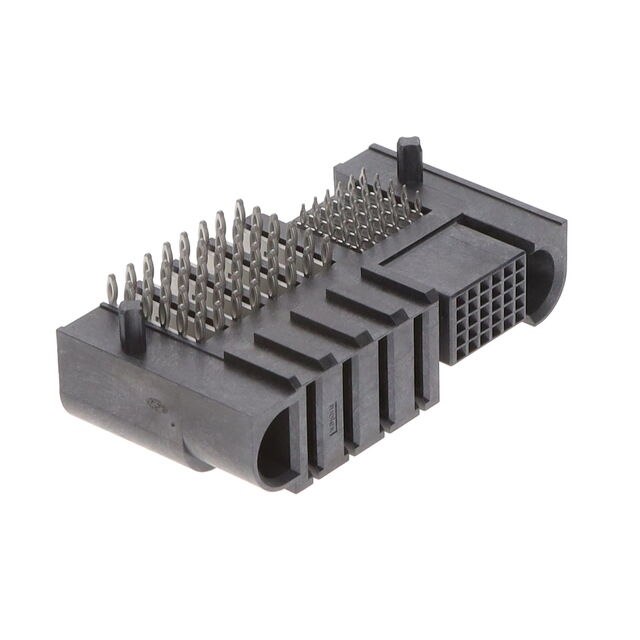

Molex 2195640019	Copper Alloy	30 µin	Gold	Push-Pull	LCP Liquid Crystal Polymer	5	Press-Fit	Black	34	Right Angle Through Hole	Female Blade Sockets Receptacle	Board Guide
Molex 2195640009	Copper Alloy	30 µin	Gold	Push-Pull	LCP Liquid Crystal Polymer	1	Press-Fit	Black	9	Right Angle Through Hole	Female Blade Sockets Receptacle	Board Guide
Molex 2195640020	Copper Alloy	30 µin	Gold	Push-Pull	LCP Liquid Crystal Polymer	5	Press-Fit	Black	35	Right Angle Through Hole	Female Blade Sockets Receptacle	Board Guide

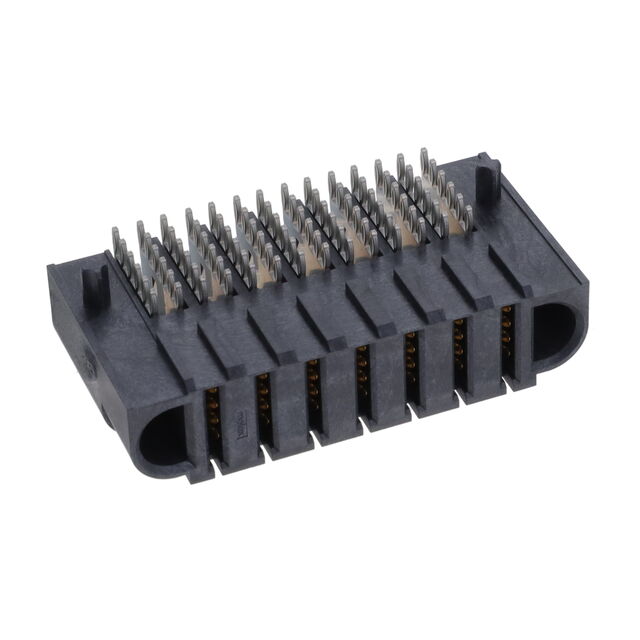

Molex 2195640007	Copper Alloy	30 µin	Gold	Push-Pull	LCP Liquid Crystal Polymer	1	Press-Fit	Black	7	Right Angle Through Hole	Female Blade Sockets Receptacle	Board Guide
Molex 2195640039	Copper Alloy	30 µin	Gold	Push-Pull	LCP Liquid Crystal Polymer	1	Press-Fit	Black	9	Right Angle Through Hole	Female Blade Sockets Receptacle	Board Guide
Molex 2195640004	Copper Alloy	30 µin	Gold	Push-Pull	LCP Liquid Crystal Polymer	1	Press-Fit	Black	4	Right Angle Through Hole	Female Blade Sockets Receptacle	Board Guide
