Description
General part information

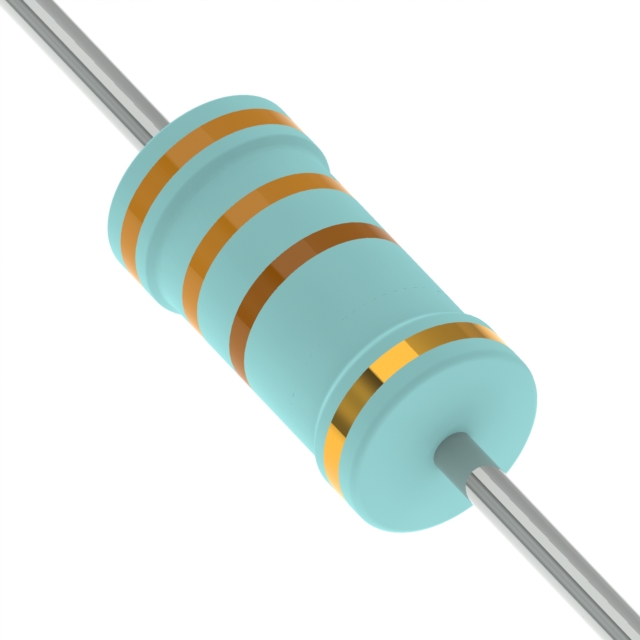

KNP-50JR-52-330R
330 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Flame Retardant Coating, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | KNP-50JR-52-330R |
|---|---|
| Composition | Wirewound |
| Features | Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 330 Ohm |
| Size / Dimension Diameter | 0.138 in |
| Size / Dimension Length | 0.354 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
