HVLR1279F100MK9
ActiveC&B Eureka Innovations
RES 100M OHM 12W 1% AXIAL
HVLR1279F100MK9
ActiveC&B Eureka Innovations
RES 100M OHM 12W 1% AXIAL
Description
General part information
HVLR1279F100MK9

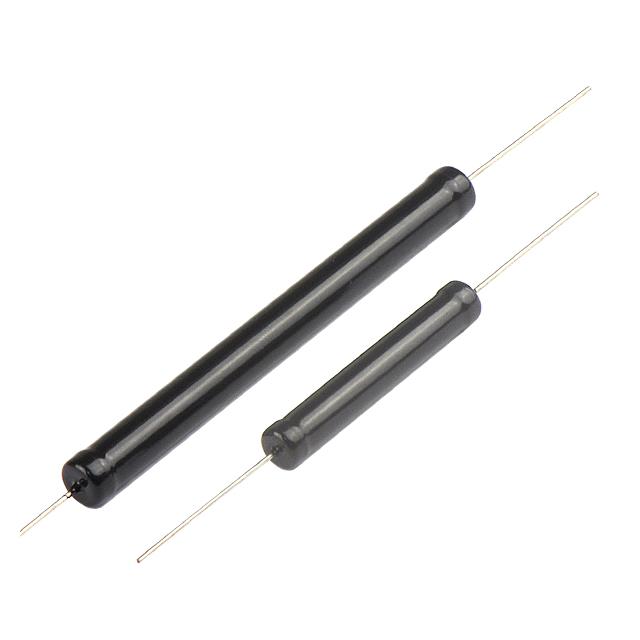

100 MOhms ±1% 12W Through Hole Resistor Axial High Voltage, Non-Inductive Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HVLR1279F100MK9 |
|---|---|
| Composition | Thick Film |
| Features | Non-Inductive, High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 12 W |
| Resistance | 100 MOhm |
| Size / Dimension Diameter | 0.413 in |
| Size / Dimension Length | 5 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
