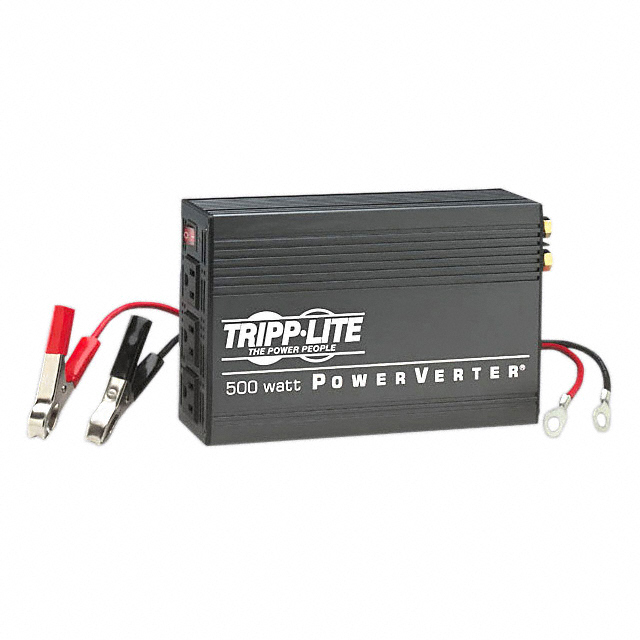

PV500
ObsoleteEaton Tripp Lite
INVERTER 500W 3OUT W/BATT CLIPS
PV500
ObsoleteEaton Tripp Lite
INVERTER 500W 3OUT W/BATT CLIPS
Description
General part information
PV500
12VDC Voltage Input 500 W Power Output Continuous Inverter 3 AC Outlets NEMA 5-15R North America
Technical Specifications
Parameters and characteristics for this part
| Specification | PV500 |
|---|---|
| AC Outlets (Count) | 3 count |
| Connector - AC Output | NEMA 5-15R |
| Connector - Voltage Input | Terminals |
| Power - Output Continuous | 500 W |
| Power - Output Surge | 800 VA |
| Region Utilized | North America |
| Remote Capability | No |
| Size Height | 2.5 " |
| Size Length | 8 in |
| Size Width | 5 in |
| Type | Inverter |
| Voltage - Input | 12 V |
| Voltage - Output | 120 V |
| Weight | 2.5 lbs |
