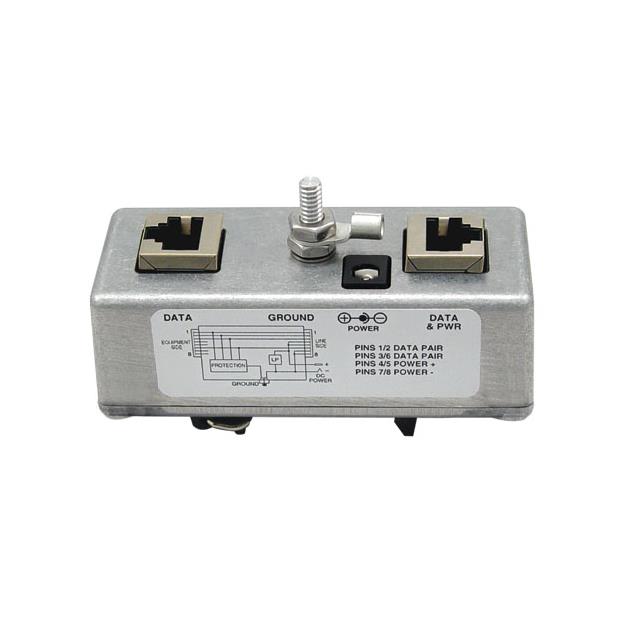

BTD-CAT5-P1
ActivePasternack
INJDIN DC PWR CAT5 5-48 VDC
BTD-CAT5-P1
ActivePasternack
INJDIN DC PWR CAT5 5-48 VDC
Description
General part information
BTD-CAT5-P1
Power Over Ethernet (POE) 1 Port Midspan Injector Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | BTD-CAT5-P1 |
|---|---|
| Current - Output | 1 A |
| Input Connector | RJ45 (Data, Power), Receptacle (Power) |
| Input Connector Size | 2.5 mm |
| Mounting Type | Chassis Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Connector | Power), RJ45 (Data |
| Size / Dimension Height | 1.2 in |
| Size / Dimension Length | 3.6 in |
| Size / Dimension Width | 1.4 in |
| Type | Midspan Injector |
