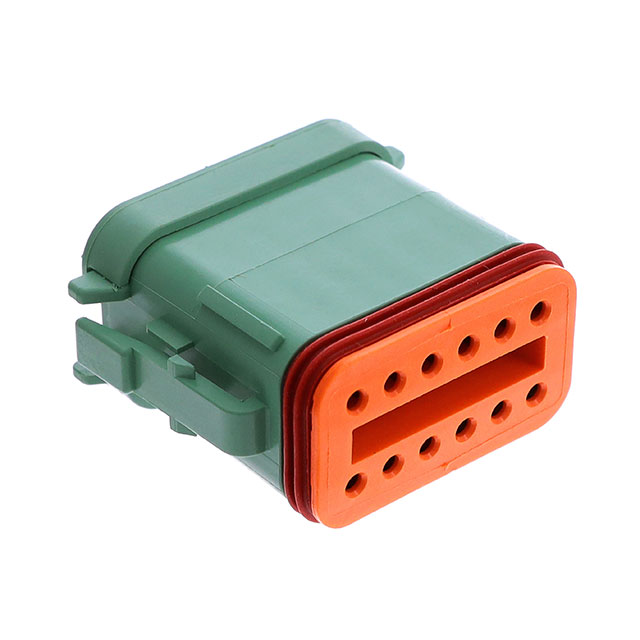

Specification	DT06-12SC-C017

Color	Green
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	IP6K9K, IP68, Blocked Gasket
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.359 in
Row Spacing	0.175 in

DT06 Series

Part	Note	Connector Type	Fastening Type	Contact Type	Mounting Type	Number of Rows	Features	Operating Temperature (Max)	Operating Temperature (Min)	Contact Termination	Color	Number of Positions	Insulation Material	Pitch	Row Spacing
TE Connectivity AMP Connectors DT04-3P-TN32	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Cap (Cover) IP68 IP6K9K Reduced Wire Seals Sealed Gasket	125 °C	-55 °C	Crimp	Black	3	Glass Filled Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors DT04-3P-TE82	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Cap (Cover) IP68 IP6K9K Reduced Wire Seals Sealed Gasket	125 °C	-55 °C	Crimp	Black	3	Glass Filled Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors DT04-08PB-P004		Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Sealed	125 °C	-55 °C	Crimp	Black	8	Glass Filled Nylon Polyamide (PA)	0.359 in	0.175 in
TE Connectivity AMP Connectors DT04-3P-TE32	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Cap (Cover) IP68 IP6K9K Reduced Wire Seals Sealed Gasket	125 °C	-55 °C	Crimp	Black	3	Glass Filled Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors DT04-12PC-CE08		Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Sealed	125 °C	-55 °C	Crimp	Green	12	Glass Filled Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors DT04-08PB-P004	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	IP68 IP6K9K	125 °C	-55 °C	Crimp	Black	8	Plastic
TE Connectivity AMP Connectors DT04-3P-TN82	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Cap (Cover) IP68 IP6K9K Reduced Wire Seals Sealed Gasket	125 °C	-55 °C	Crimp	Black	3	Glass Filled Nylon 6/6 Polyamide (PA66)
TE Connectivity AMP Connectors DT04-2P-RL02	Contacts Not Included	Receptacle	Latch Holder	Male Pin		1	IP68 IP6K9K	125 °C	-55 °C	Crimp		2	Plastic
TE Connectivity AMP Connectors DT04-12PC-CE08	Contacts Not Included	Receptacle	Latch Holder	Male Pin	Free Hanging (In-Line)	2	Enhanced Keying IP68 IP6K9K Reduced Wire Seals	125 °C	-55 °C	Crimp	Green	12	Plastic
TE Connectivity AMP Connectors DT04-12PA-CE04		Receptacle	Locking Ramp	Male Pin	Free Hanging (In-Line)	2	Sealed Terminal Position Lock (TPA)	125 °C	-55 °C	Crimp	Gray	12	Glass Filled Nylon 6/6 Polyamide (PA66)	0.359 in
