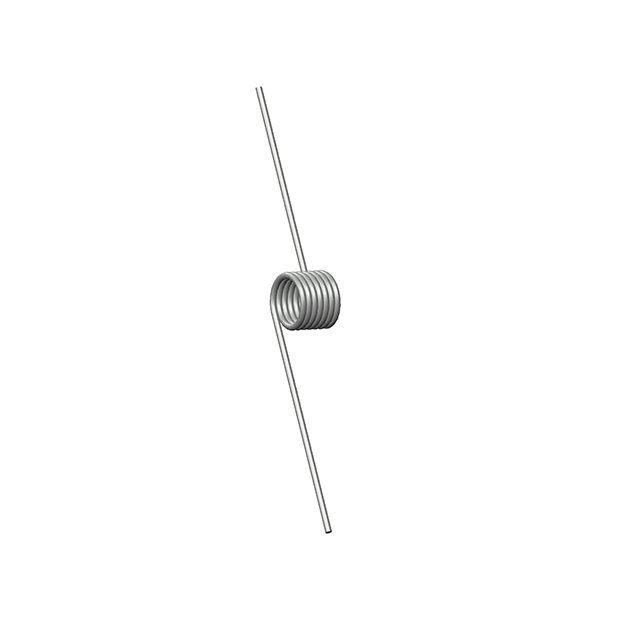

TO-5022RCS
ActiveCentury Spring Corp
TOR O=.186, W=.021
TO-5022RCS
ActiveCentury Spring Corp
TOR O=.186, W=.021
Description
General part information
TO-5022RCS
TOR O=.186, W=.021
Technical Specifications
Parameters and characteristics for this part
| Specification | TO-5022RCS |
|---|---|
| Deflection Angle | 156 ° |
| Diameter - Outside | 0.19 in |
| Finish | None |
| Leg Length | 0.75 in |
| Mandrel Diameter | 0.12 in |
| Material | Music Wire |
| Number of Coils | 7 |
| Wind Direction | Right |
| Wire Diameter | 0.021 in |
