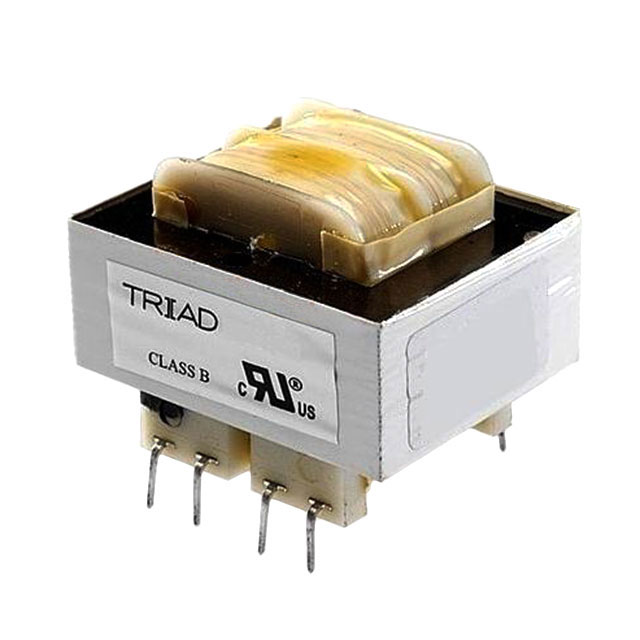

FS36-65-B
ActiveTriad Magnetics
PWR XFMR LAMINATED 2.4VA TH
FS36-65-B
ActiveTriad Magnetics
PWR XFMR LAMINATED 2.4VA TH
Description
General part information
FS36-65-B
PWR XFMR LAMINATED 2.4VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | FS36-65-B |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 130 mA |
| Current - Output (Max) Series | 65 mA |
| Height - Seated (Max) | 30.15 mm |
| Mounting Type | Through Hole |
| Power - Max | 2.4 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 34.93 mm |
| Size / Dimension Width | 28.56 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 18 V |
| Voltage - Secondary (Full Load) (Series) | 36 V |
| Weight | 0.25 lbs |
