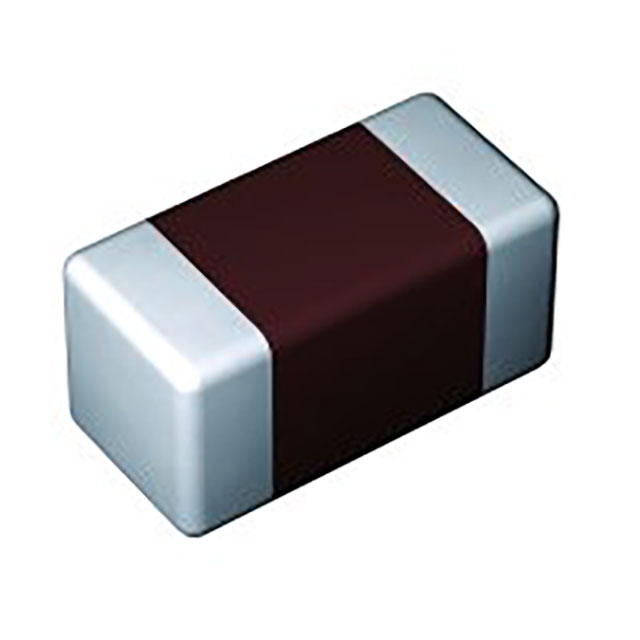

Specification	UMK325B7335MM-P

Applications	SMPS Filtering
Capacitance	3.3 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	1210 (3225 Metric)
Size / Dimension Length	0.126 in
Size / Dimension Width	0.098 in
Temperature Coefficient	X7R
Thickness (Max)	0.106 in
Tolerance	20 %
Voltage - Rated	50 V

M Series

...

Part	Capacitance	Thickness (Max)	Mounting Type	Size / Dimension Width	Size / Dimension Length	Package / Case	Applications	Voltage - Rated	Tolerance	Temperature Coefficient	Operating Temperature (Max)	Operating Temperature (Min)
Taiyo Yuden TMK063CG3R3CT-F	3.3 pF	0.013 in	MLCC Surface Mount	0.012 in	0.024 in	0201 (0603 Metric)	General Purpose	25 VAC	0.25 pF	C0G NP0	125 °C	-55 °C
Taiyo Yuden LMK316AB7106ML-T	10 µF	0.071 in	MLCC Surface Mount	0.063 in	0.126 in	1206 (3216 Metric)	SMPS Filtering	10 V	20 %	X7R	125 °C	-55 °C
Taiyo Yuden JMK107BBJ106MK-T	10 µF	0.02 in	MLCC Surface Mount	0.031 in	0.063 in	0603 (1608 Metric)	SMPS Filtering	6.3 V	20 %	X5R	85 °C	-55 °C
Taiyo Yuden TMK042CG330JC-W	33 pF	0.009 in	MLCC Surface Mount	0.008 in	0.016 in	01005 (0402 Metric)	General Purpose	25 VAC	5 %	C0G NP0	125 °C	-55 °C
Taiyo Yuden LMK105BJ104KV-F	0.1 µF	0.022 in	MLCC Surface Mount	0.02 in	0.039 in	0402 (1005 Metric)	SMPS Filtering	10 V	10 %	X5R	85 °C	-55 °C
Taiyo Yuden TMK042CG7R1BD-W	7.1 pF	0.009 in	MLCC Surface Mount	0.008 in	0.016 in	01005 (0402 Metric)	General Purpose	25 VAC	0.1 pF	C0G NP0	125 °C	-55 °C
Taiyo Yuden JMK105B7224MV-F	0.22 µF	0.026 in	MLCC Surface Mount	0.02 in	0.039 in	0402 (1005 Metric)	SMPS Filtering	6.3 V	20 %	X7R	125 °C	-55 °C
Taiyo Yuden LMK325AC6107MM-P	100 µF	0.11 in	MLCC Surface Mount	0.098 in	0.126 in	1210 (3225 Metric)	SMPS Filtering	10 V	20 %	X6S	105 °C	-55 °C
Taiyo Yuden EMK107BJ105MK-T	1 µF	0.02 in	MLCC Surface Mount	0.031 in	0.063 in	0603 (1608 Metric)	SMPS Filtering	16 V	20 %	X5R	85 °C	-55 °C
Taiyo Yuden TMK105BJ224MV-F	0.22 µF	0.026 in	MLCC Surface Mount	0.02 in	0.039 in	0402 (1005 Metric)	SMPS Filtering	25 VAC	20 %	X5R	85 °C	-55 °C
