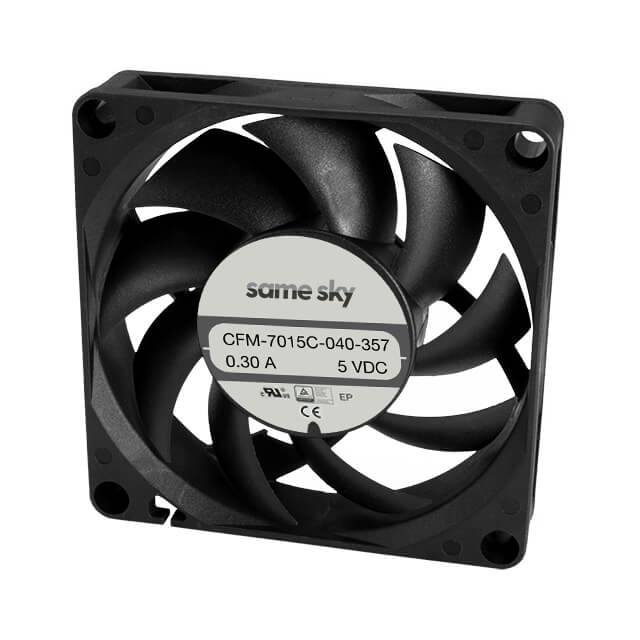

CFM-7015C-040-357-20
ActiveSame Sky (Formerly CUI Devices)
FAN AXIAL 70X15.5MM 5VDC WIRE
CFM-7015C-040-357-20
ActiveSame Sky (Formerly CUI Devices)
FAN AXIAL 70X15.5MM 5VDC WIRE
Description
General part information
CFM-7015C-040-357-20
Fan Tubeaxial 5VDC Square - 70mm L x 70mm H omniCOOL™ Magnetic Sleeve 25.7 CFM (0.720mł/min) 3 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM-7015C-040-357-20 |
|---|---|
| Air Flow | 25.7 CFM |
| Approval Agency | cURus, TUV, CE |
| Bearing Type | omniCOOL™ Magnetic Sleeve |
| Current Rating | 480 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Lifetime | 40000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 35.7 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 2.4 W |
| RPM | 4000 RPM |
| Size / Dimension Height | 70 mm |
| Size / Dimension Length | 70 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.14 in H2O |
| Termination | 3 Wire Leads |
| Termination Leads Count | 3 |
| Termination Type | Wire Leads |
| Voltage - Rated | 5 VAC |
| Voltage Range (Max) | 13.2 VDC |
| Voltage Range (Min) | 10.8 VDC |
| Width | 15.5 mm |
