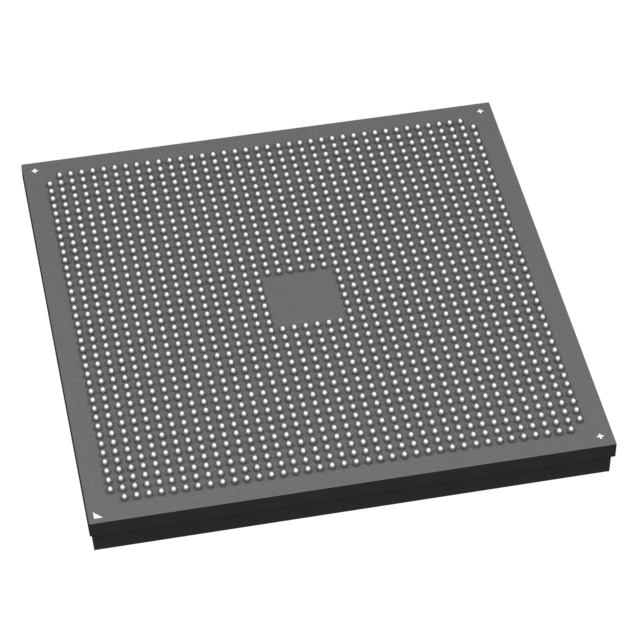

XCVC1802-1MSEVIVA1596

XCVC1802-1MSEVIVA1596

Active
AMD / Xilinx

SOC FPGA XCVC1802-1MSEVIVA1596

Find alt

Description

General part information

XCVC1802-1MSEVIVA1596

Dual ARM® Cortex®-A72 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5F with CoreSight™ System On Chip (SOC) IC Versal™ AI Core Versal™ AI Core FPGA, 1.5M Logic Cells 600MHz, 1.3GHz 1596-FCBGA (40x40)

Technical Specifications

Parameters and characteristics for this part

SpecificationXCVC1802-1MSEVIVA1596
ArchitectureMPU, FPGA
ConnectivityUSART, SD, USB OTG, CANbus, MMC, EBI, UART, Ethernet, SPI, I2C, SDIO, EMI
Core ProcessorDual ARM® Cortex®-A72 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5F with CoreSight™
Logic Elements1.5 M Logic Cells
Number of I/O500
Operating Temperature (Max)100 °C
Operating Temperature (Min)0 °C
Package / CaseFCBGA, 1596-BFBGA
Package Length40 mm
Package Name1596-FCBGA
Package Width40 mm
PeripheralsDDR, DMA, PCIe
Primary AttributesVersal™ AI Core FPGA, 1.5M Logic Cells, 1.5M Logic Cells, Versal™ AI Core FPGA
RAM Size256 KB
Speed1.3 GHz, 600 MHz
