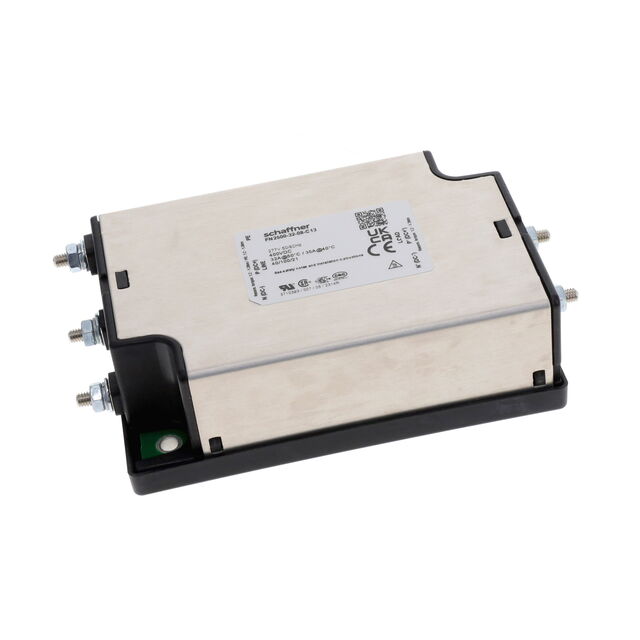

Specification	FN2500-32-08-C13

Applications	General Purpose
Approval Agency	UR, CQC, CE, ENEC, CSA, UKCA
Configuration	Single Stage
Current	32 A
Filter Type	Single Phase
Frequency - Operating (Max)	60 Hz
Frequency - Operating (Min)	0 Hz
Inductance	1.5 mH
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Termination Style	Threaded Post (M4)
Voltage - Rated AC	277 V
Voltage - Rated DC	400 V

Schaffner FN2500 Series

Part	Mounting Type	Current	Frequency - Operating (Max)	Applications	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Approval Agency	Voltage - Rated AC	Configuration	Inductance	Voltage - Rated DC	Filter Type
TE Connectivity AMP Connectors FN2500-32-103-C19	Chassis Mount	32 A	60 Hz	General Purpose	100 °C	-40 °C	Terminal Block	CE CQC CSA ENEC UKCA UR	277 V	Single Stage	1.5 mH	400 V	Single Phase
TE Connectivity AMP Connectors FN2500-25-08-C13	Chassis Mount	25 A	60 Hz	General Purpose	100 °C	-40 °C	Threaded Post (M4)	CE CQC CSA ENEC UKCA UR	277 V	Single Stage	1.5 mH	400 V	Single Phase
TE Connectivity AMP Connectors FN2500-25-103-C13	Chassis Mount	25 A	60 Hz	General Purpose	100 °C	-40 °C	Terminal Block	CE CQC CSA ENEC UKCA UR	277 V	Single Stage	1.5 mH	400 V	Single Phase
TE Connectivity AMP Connectors FN2500-32-08-C12	Chassis Mount	32 A	60 Hz	General Purpose	100 °C	-40 °C	Threaded Post (M4)	CE CQC CSA ENEC UKCA UR	277 V	Single Stage	1.5 mH	400 V	Single Phase
TE Connectivity AMP Connectors FN2500-20-05-C13	Chassis Mount	20 A	60 Hz	General Purpose	100 °C	-40 °C	Terminal Post	CE CQC CSA ENEC UKCA UR	277 V	Single Stage	2.4 mH	400 V	Single Phase
TE Connectivity AMP Connectors FN2500-20-08-C13	Chassis Mount	20 A	60 Hz	General Purpose	100 °C	-40 °C	Threaded Post (M4)	CE CQC CSA ENEC UKCA UR	277 V	Single Stage	2.4 mH	400 V	Single Phase
TE Connectivity AMP Connectors FN2500-10-05-C13	Chassis Mount	10 A	60 Hz	General Purpose	100 °C	-40 °C	Terminal Post	CE CQC CSA ENEC UKCA UR	277 V	Single Stage	8.3 mH	400 V	Single Phase
TE Connectivity AMP Connectors FN2500-20-103-C13	Chassis Mount	20 A	60 Hz	General Purpose	100 °C	-40 °C	Terminal Block	CE CQC CSA ENEC UKCA UR	277 V	Single Stage	2.4 mH	400 V	Single Phase
TE Connectivity AMP Connectors FN2500-10-103-C13	Chassis Mount	10 A	60 Hz	General Purpose	100 °C	-40 °C	Terminal Block	CE CQC CSA ENEC UKCA UR	277 V	Single Stage	8.3 mH	400 V	Single Phase
TE Connectivity AMP Connectors FN2500-20-07-C13	Chassis Mount	20 A	60 Hz	General Purpose	100 °C	-40 °C	Wire Leads	CE CQC CSA ENEC UKCA UR	277 V	Single Stage	2.4 mH	400 V	Single Phase
