24FC256T-I/MF

Active

Microchip Technology

EEPROM SERIAL-I2C 256K-BIT 32K X 8 1.8V/2.5V/3.3V/5V 8-PIN DFN-S EP T/R AUTOMOTIVE AEC-Q100

Find alt

Alpha

24FC256T-I/MF

Active

Microchip Technology

EEPROM SERIAL-I2C 256K-BIT 32K X 8 1.8V/2.5V/3.3V/5V 8-PIN DFN-S EP T/R AUTOMOTIVE AEC-Q100

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

24FC256 Series

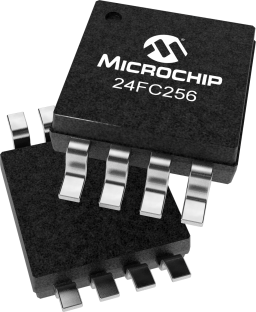

The Microchip Technology Inc. 24FC256 is a 256Kb (32K x 8) Serial Electrically Erasable PROM (EEPROM), capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device also has a page write capability of up to 64 bytes of data. This device is capable of both random and sequential reads up to the 256K boundary. Functional address lines allow up to eight devices on the same bus, for up to 2 Mbit address space. This device is available in the standard 8-pin plastic DIP, SOIC, TSSOP, MSOP and DFN packages.

Technical Specifications

Parameters and characteristics for this part

Specification	24FC256T-I/MF

Access Time	400 ns
Clock Frequency	1 MHz
Memory Depth	32 K
Memory Format	EEPROM
Memory Interface (Type)	I2C
Memory Size	32 kB
Memory Type	Non-Volatile
Memory Width	8 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	8-VDFN Exposed Pad
Package Length	6 mm
Package Name	8-DFN-S
Package Width	5 mm
Technology	EEPROM
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	1.7 V
Write Cycle Time - Page	5 ms
Write Cycle Time - Word	5 ms

24FC256 Series

Part	Memory Interface (Type)	Memory Type	Technology	Memory Format	Clock Frequency	Mounting Type	Memory Depth	Memory Width	Write Cycle Time - Word	Write Cycle Time - Page	Package Name	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Length	Memory Size	Access Time	Package / Case	Grade	Qualification
Microchip Technology 24FC256T-I/MS	I2C	Non-Volatile	EEPROM	EEPROM	1 MHz	Surface Mount	32 K	8 bit	5 ms	5 ms	8-MSOP 8-TSSOP 8-MSOP	1.7 V	5.5 V	85 °C	-40 °C	3 mm	0.118 in	32 kB	400 ns
Microchip Technology 24FC256T-I/SM	I2C	Non-Volatile	EEPROM	EEPROM	1 MHz	Surface Mount	32 K	8 bit	5 ms	5 ms	8-SOIC 8-SOIJ	1.7 V	5.5 V	85 °C	-40 °C	5.3 mm	0.209 in	32 kB	400 ns
Microchip Technology 24FC256T-I/ST	I2C	Non-Volatile	EEPROM	EEPROM	1 MHz	Surface Mount	32 K	8 bit	5 ms	5 ms	8-TSSOP	1.7 V	5.5 V	85 °C	-40 °C	4.4 mm	0.173 in	32 kB	400 ns
Microchip Technology 24FC256-I/MF	I2C	Non-Volatile	EEPROM	EEPROM	1 MHz	Surface Mount	32 K	8 bit	5 ms	5 ms	8-DFN-S	1.7 V	5.5 V	85 °C	-40 °C	5 mm	6 mm	32 kB	400 ns	8-VDFN Exposed Pad
Microchip Technology 24FC256-E/ST16KVAO	I2C	Non-Volatile	EEPROM	EEPROM	1 MHz	Surface Mount	32 K	8 bit	5 ms	5 ms	8-TSSOP	1.7 V	5.5 V	125 °C	-40 °C	4.4 mm	0.173 in	32 kB	400 ns		Automotive	AEC-Q100
Microchip Technology 24FC256-I/SN	I2C	Non-Volatile	EEPROM	EEPROM	1 MHz	Surface Mount	32 K	8 bit	5 ms	5 ms	8-SOIC	1.7 V	5.5 V	85 °C	-40 °C	3.9 mm	0.154 in	32 kB	400 ns
Microchip Technology 24FC256T-I/MNY	I2C	Non-Volatile	EEPROM	EEPROM	1 MHz	Surface Mount	32 K	8 bit	5 ms	5 ms	8-TDFN	1.7 V	5.5 V	85 °C	-40 °C	3 mm	2 mm	32 kB	400 ns	8-WFDFN Exposed Pad
Microchip Technology 24FC256-I/MS	I2C	Non-Volatile	EEPROM	EEPROM	1 MHz	Surface Mount	32 K	8 bit	5 ms	5 ms	8-MSOP 8-TSSOP 8-MSOP	1.7 V	5.5 V	85 °C	-40 °C	3 mm	0.118 in	32 kB	400 ns
Microchip Technology 24FC256T-E/ST16KVAO	I2C	Non-Volatile	EEPROM	EEPROM	1 MHz	Surface Mount	32 K	8 bit	5 ms	5 ms	8-TSSOP	1.7 V	5.5 V	125 °C	-40 °C	4.4 mm	0.173 in	32 kB	400 ns		Automotive	AEC-Q100
Microchip Technology 24FC256T-I/SN	I2C	Non-Volatile	EEPROM	EEPROM	1 MHz	Surface Mount	32 K	8 bit	5 ms	5 ms	8-SOIC	1.7 V	5.5 V	85 °C	-40 °C	3.9 mm	0.154 in	32 kB	400 ns
