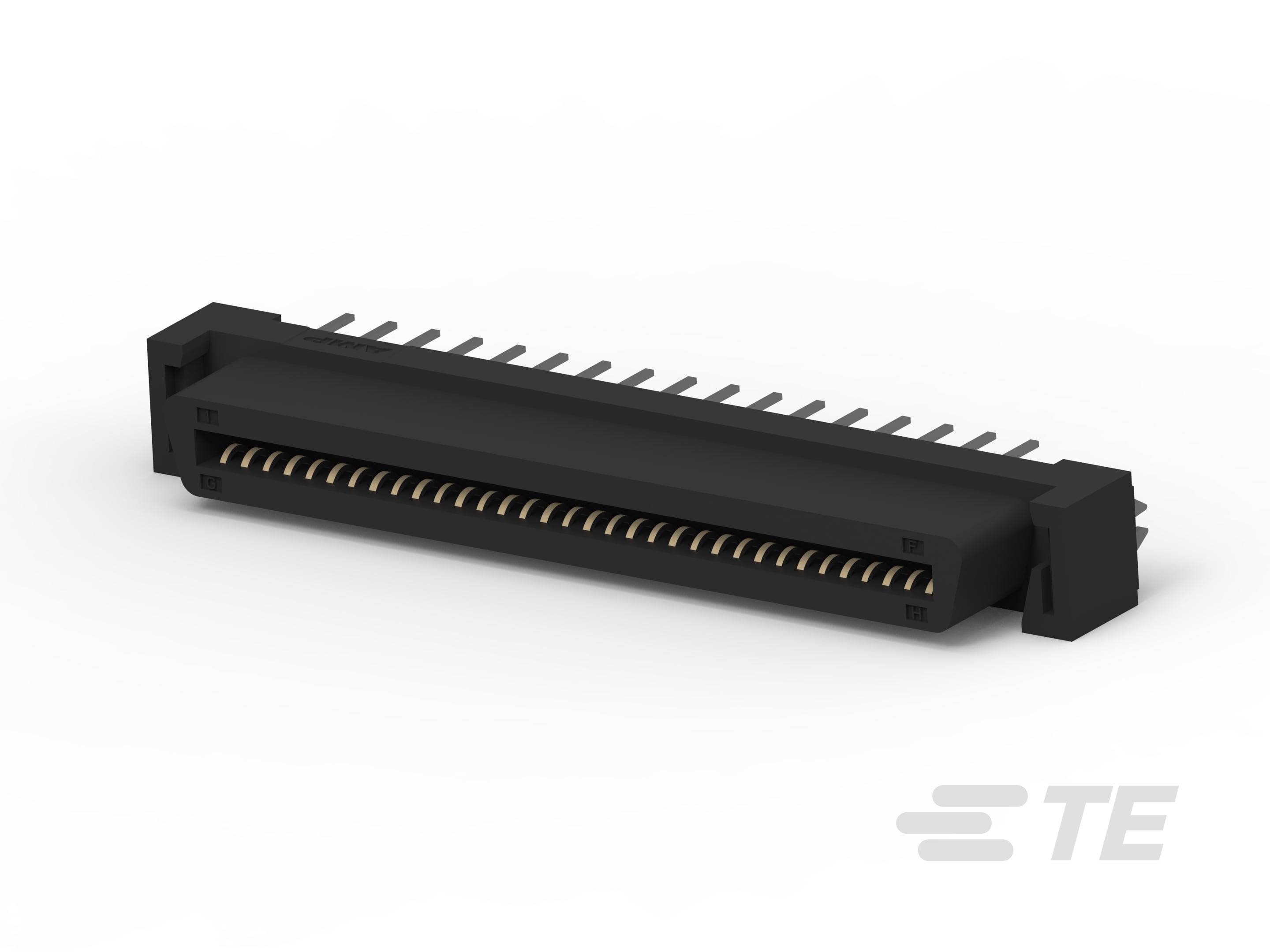

1734101-7
ActiveTE Connectivity AMP Connectors
CHAMP050 SERIES,68POS,AU OVER PDNI
1734101-7
ActiveTE Connectivity AMP Connectors
CHAMP050 SERIES,68POS,AU OVER PDNI
Description
General part information
CHAMP .050 Series I Series
PCB Mount Receptacle, Vertical, Board-to-Board, 68 Position, 1.27 mm [.05 in] Centerline, Gold Flash, Through Hole - Solder, CHAMP .050 Series I
Technical Specifications
Parameters and characteristics for this part
| Specification | 1734101-7 |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Features | Board Guide, Board Lock |
| Mounting Type | Through Hole |
| Number of Positions | 68 |
| Number of Rows | 2 |
| Termination | Solder |
| Type | Board to Board |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
