05083C103MAT2S
ActiveKYOCERA AVX
CAP CER 10000PF 25V X7R 0508
05083C103MAT2S
ActiveKYOCERA AVX
CAP CER 10000PF 25V X7R 0508
Description
General part information
05083C103MAT2S

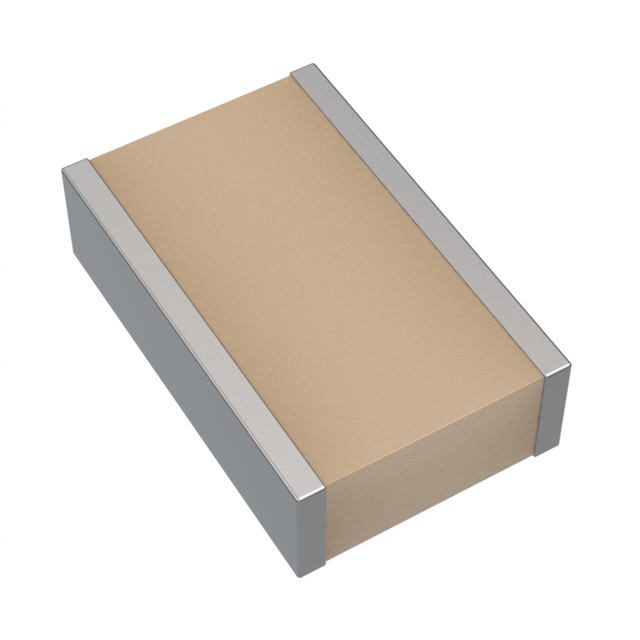

10000 pF ±20% 25V Ceramic Capacitor X7R 0508 (1220 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 05083C103MAT2S |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 10000 pF |
| Features | Low ESL (Reverse Geometry) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0508 (1220 Metric) |
| Size / Dimension Length | 0.05 in |
| Size / Dimension Width | 0.079 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.022 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
