1577632-1
ActiveTE Connectivity AMP Connectors

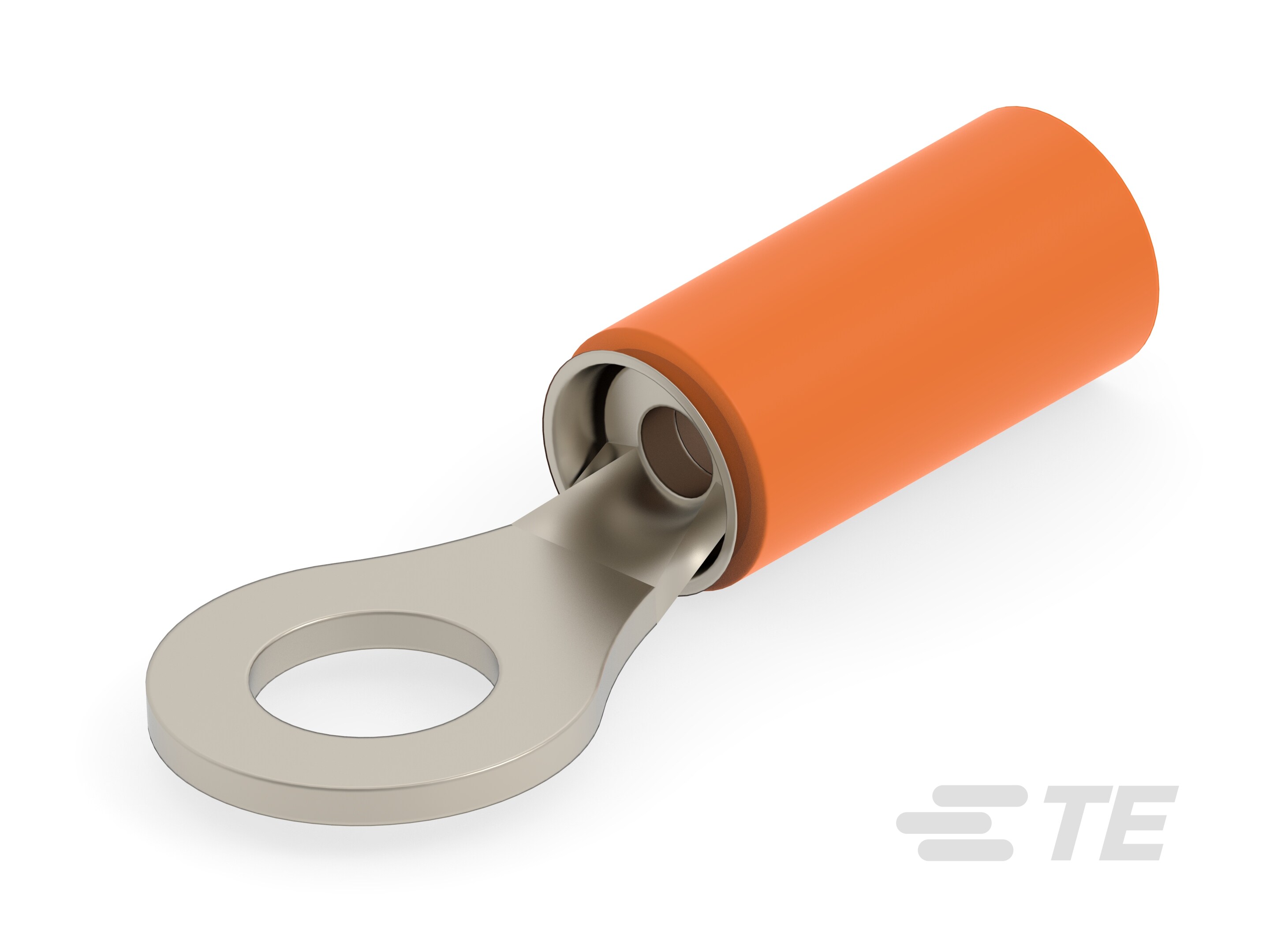

PIDG RING TONGUE TERMINAL 16-18AWG COPPER ORANGE 22.43MM NICKEL BAG/BOX
1577632-1
ActiveTE Connectivity AMP Connectors
PIDG RING TONGUE TERMINAL 16-18AWG COPPER ORANGE 22.43MM NICKEL BAG/BOX
Description
General part information
1577632-1
Closed Ring Tongue Terminal, 18 – 16 AWG, #8 Stud, 4.34 mm [.171 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, STRATO-THERM
Technical Specifications
Parameters and characteristics for this part
| Specification | 1577632-1 |
|---|---|
| Color | Orange |
| Contact Finish | Nickel |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.883 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.032 in |
| Width - Outer Edges | 0.312 in |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
