1823175
ActivePhoenix Contact

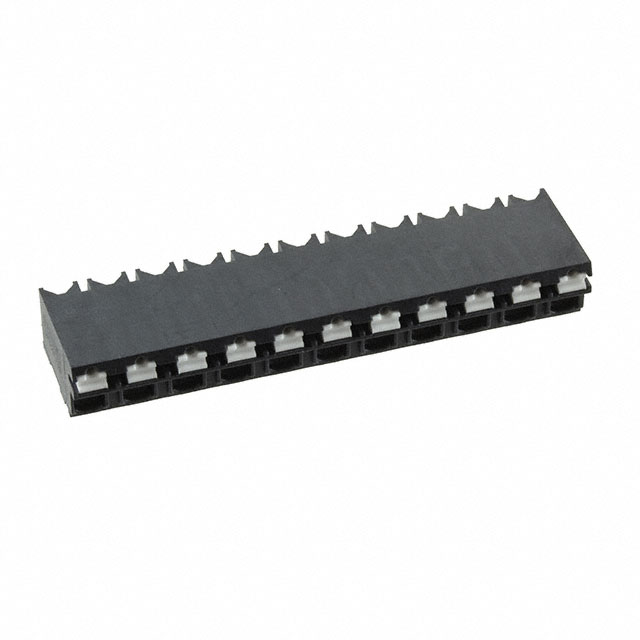

TERM BLK 11P SIDE ENT 5.08MM PCB
1823175
ActivePhoenix Contact
TERM BLK 11P SIDE ENT 5.08MM PCB
Description
General part information
1823175
11 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1823175 |
|---|---|
| Color | Black |
| Contact Material - Plating | Tin Plated |
| Current | 10 A |
| Housing Material | Liquid Crystal Polymer, LCP |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 5.08 mm |
| Positions Per Level | 11 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
