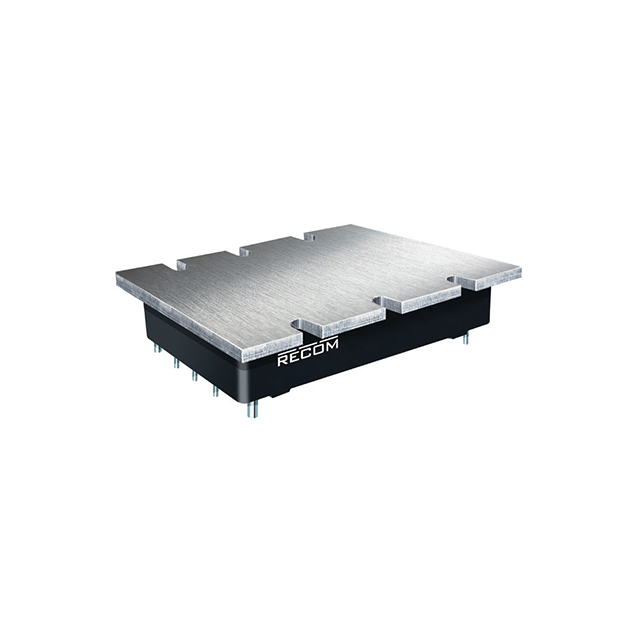

RPA120H-11012SRW/GN
ObsoleteRecom Power
DC DC CONVERTER 12V 100W
RPA120H-11012SRW/GN
ObsoleteRecom Power
DC DC CONVERTER 12V 100W
Description
General part information
RPA120H-11012SRW/GN
Isolated Module DC DC Converter 1 Output 12V 8.3A 53V - 154V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RPA120H-11012SRW/GN |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Current - Output (Max) | 8.3 A |
| Efficiency | 86 % |
| Features | OCP, SCP, OVP, OTP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Half Brick |
| Package Name | Half Brick |
| Power (Watts) | 100 W |
| Size / Dimension Height | 0.5 in |
| Size / Dimension Length | 2.4 in |
| Size / Dimension Width | 2.28 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 154 V |
| Voltage - Input (Min) | 53 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 12 V |
