V7C00014
ActivePasternack
BNC ST JACK FOR BELDEN 1855A
V7C00014
ActivePasternack
BNC ST JACK FOR BELDEN 1855A
Description
General part information
V7C00014

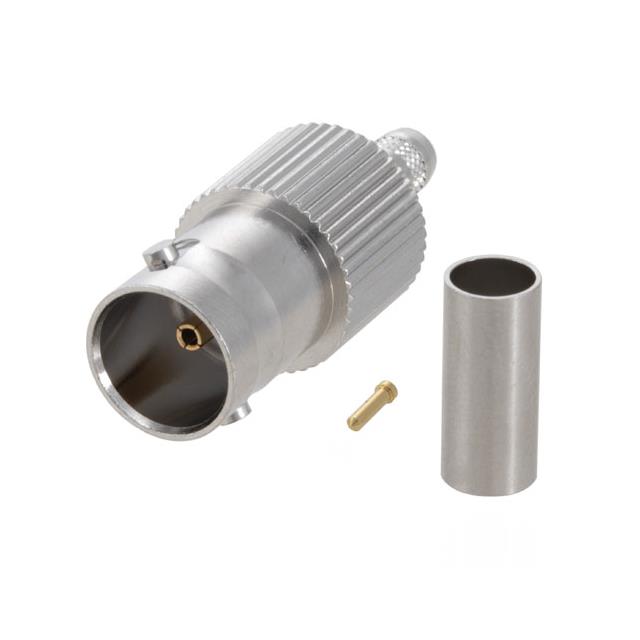

BNC Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | V7C00014 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Belden 1855A |
| Center Contact Material | Brass |
| Center Contact Plating | Nickel, Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 12 Gbps |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
