CQB75-300S24N-CMFC

Active

Cincon Electronics Co. LTD

DC/DC CONVERTER 24V 75W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

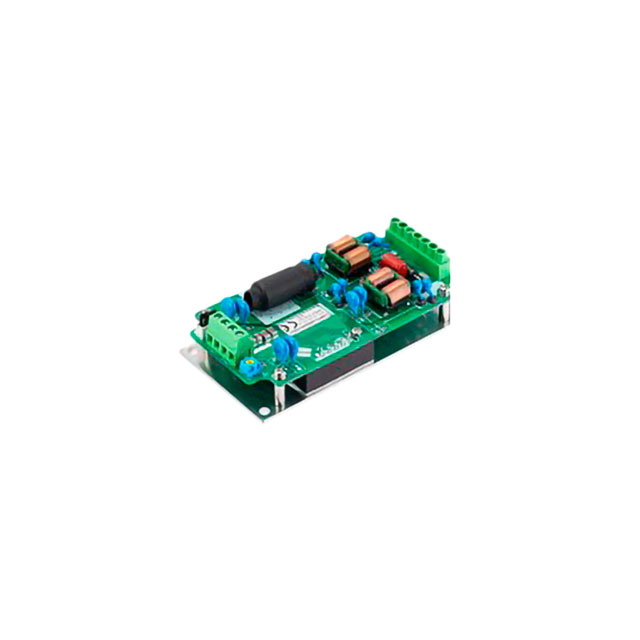

CQB75-300S24N-CMFC

Active

Cincon Electronics Co. LTD

DC/DC CONVERTER 24V 75W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CQB75-300S24N-CMFC

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	3.12 A
Efficiency	90 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Power (Watts)	75 W
Size / Dimension [x]	4.6 "
Size / Dimension [x]	116.8 mm
Size / Dimension [y]	61 mm
Size / Dimension [y]	2.4 "
Size / Dimension [z]	1.24 "
Size / Dimension [z]	31.4 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Input (Max) [Max]	450 V
Voltage - Input (Min) [Min]	180 V
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

CQB75 Series

Part	Mounting Type	Number of Outputs	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Control Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Standard Number	Type	Applications	Current - Output (Max) [Max]	Features	Voltage - Isolation	Package / Case	Supplier Device Package
Cincon Electronics Co. LTD CQB75W-48S12	Through Hole	1	CE cURus	18 V	75 V	75 W	-40 °C	100 °C	86 %	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	12 V	60950-1	Isolated Module	ITE (Commercial)	6.25 A	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Module
Cincon Electronics Co. LTD CQB75-300S48	Through Hole	1	CE	180 V	450 V	75 W	-40 °C	105 C	89 %	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	48 V	62368-1	Isolated Module	ITE (Commercial)	1.56 A		3000 V	Quarter Brick	Quarter Brick
Cincon Electronics Co. LTD CQB75W-24S05	Through Hole	1	CE cURus	9 V	36 V	60 W	-40 °C	100 °C	84 %	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	5 V	60950-1	Isolated Module	ITE (Commercial)	12 A	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Module
Cincon Electronics Co. LTD CQB75-300S05	Through Hole	1	CE	180 V	450 V	75 W	-40 °C	105 C		Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	5 V	62368-1	Isolated Module	ITE (Commercial)	15 A		3000 V	Quarter Brick	Quarter Brick
Cincon Electronics Co. LTD CQB75W-48S24	Through Hole	1	CE cURus	18 V	75 V	75 W	-40 °C	100 °C	87 %	Active High Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	24 V	60950-1	Isolated Module	ITE (Commercial)	3.12 A	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Module
Cincon Electronics Co. LTD CQB75-300S24N	Through Hole	1	CE	180 V	450 V	75 W	-40 °C	105 C	90 %	Active Low Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	24 V	62368-1	Isolated Module	ITE (Commercial)	3.12 A		3000 V	Quarter Brick	Quarter Brick
Cincon Electronics Co. LTD CQB75-300S24N-CMFC	Chassis Mount	1	CE	180 V	450 V	75 W	-40 °C	105 C	90 %		116.8 mm	4.6 "	2.4 "	31.4 mm	61 mm	1.24 "	24 V	62368-1	Open Frame	ITE (Commercial)	3.12 A		3000 V
Cincon Electronics Co. LTD CQB75W-48S15N	Through Hole	1	CE cURus	18 V	75 V	75 W	-40 °C	100 °C	87 %	Active Low Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	15 V	60950-1	Isolated Module	ITE (Commercial)	5 A	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Module
Cincon Electronics Co. LTD CQB75-300S12N	Through Hole	1	CE	180 V	450 V	75 W	-40 °C	105 C	88 %	Active Low Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	12 V	62368-1	Isolated Module	ITE (Commercial)	6.25 A		3000 V	Quarter Brick	Quarter Brick
Cincon Electronics Co. LTD CQB75W-48S12N	Through Hole	1	CE cURus	18 V	75 V	75 W	-40 °C	100 °C	86 %	Active Low Enable	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	12 V	60950-1	Isolated Module	ITE (Commercial)	6.25 A	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 153.00
		5	$ 149.94
		10	$ 145.44
		25	$ 139.62
		50	$ 132.64

Description

General part information

CQB75 Series

Open Frame DC DC Converter 1 Output 24V 3.12A 450V Input
