GPPB-PS-1-10-EG-ST-SM-1N
ActiveSamtec Inc.

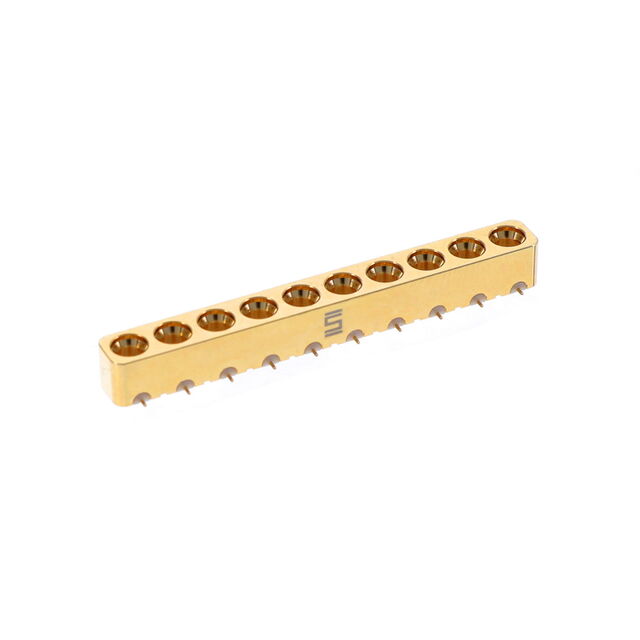

CONN SMPM PLUG 10POS GOLD SMD
GPPB-PS-1-10-EG-ST-SM-1N
ActiveSamtec Inc.
CONN SMPM PLUG 10POS GOLD SMD
Description
General part information
GPPB-PS-1-10-EG-ST-SM-1N
SMPM Connector Plug, Male Pin Surface Mount, Through Hole Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | GPPB-PS-1-10-EG-ST-SM-1N |
|---|---|
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Features | Smooth Bore |
| Frequency - Max | 65 GHz |
| Housing Color | Gold |
| Mounting Type | Surface Mount, Through Hole |
| Number of Ports | 10 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
