S9014
ActiveLumimax Optoelectronic Technology
TRANS NPN 45V 0.1A TO-92
S9014
ActiveLumimax Optoelectronic Technology
TRANS NPN 45V 0.1A TO-92
Description
General part information
S9014

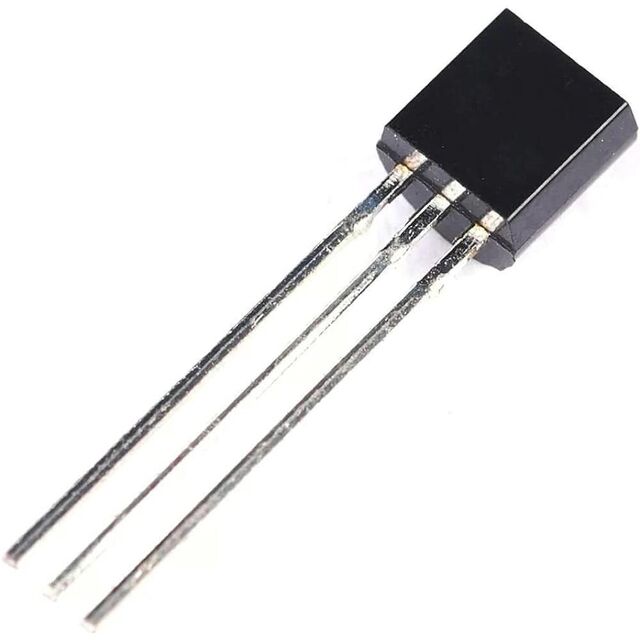

Bipolar (BJT) Transistor NPN 45 V 100 mA 150MHz 450 mW Through Hole TO-92
Technical Specifications
Parameters and characteristics for this part
| Specification | S9014 |
|---|---|
| Current - Collector (Ic) (Max) | 0.1 mA |
| Current - Collector Cutoff (Max) | 0.1 µA |
| DC Current Gain (hFE) (Min) | 60 |
| Frequency - Transition | 150 MHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Package Name | TO-92 |
| Power - Max | 450 mW |
| Transistor Type | NPN |
| Vce Saturation (Max) | 300 mV |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
