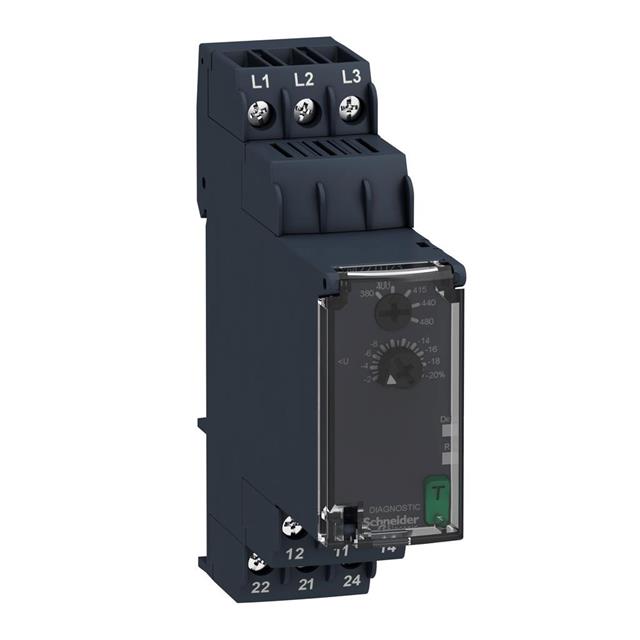

RM22TU23
ActiveSCHNEIDER ELECTRIC
HARMONY, MODULAR 3-PHASE UNDERVO
RM22TU23
ActiveSCHNEIDER ELECTRIC
HARMONY, MODULAR 3-PHASE UNDERVO
Description
General part information
RM22TU23
Phase Loss, Phase Sequence, Voltage Sensing AC 380 ~ 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | RM22TU23 |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating (Current) | 8 A |
| Delay Time (Options) | No Delay |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay |
| Trip Status | Low, Energized High |
| Trip Voltage (Max) | 480 V |
| Trip Voltage (Min) | 380 V |
| Type | Voltage Sensing AC, Phase Loss, Phase Sequence |
| Voltage - Supply (Maximum) | 480 VAC |
| Voltage - Supply (Minimum) | 380 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
