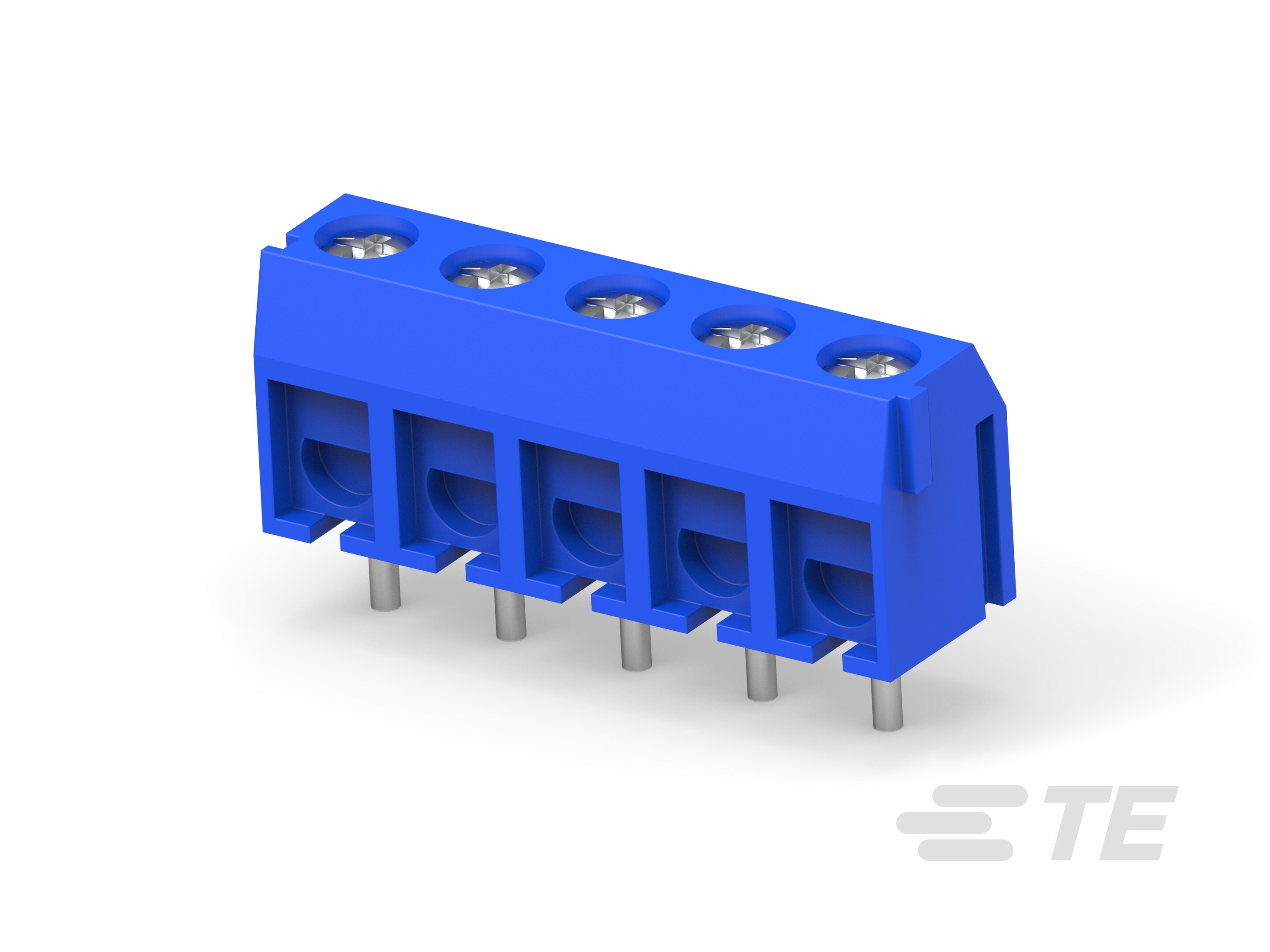

1776244-5
5 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm [.197 in] Centerline, 1 Row, 90° Wire Entry Angle, 22 – 14 AWG, .3 – 2 mm² Wire, 300 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1776244-5 |
|---|---|
| Color | Blue |
| Current | 10 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 5 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Wire Guard, Screw, Leaf Spring |
