AXA-DFDF
ActivePasternack
ADP7/16 DIN-F / 7/16 DIN-F
AXA-DFDF
ActivePasternack
ADP7/16 DIN-F / 7/16 DIN-F
Description
General part information

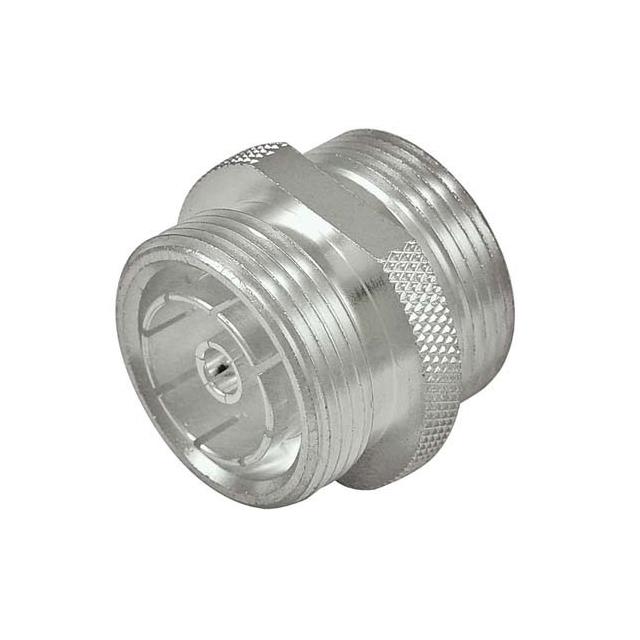

AXA-DFDF
Adapter Coaxial Connector 7/16 Jack, Female Socket To 7/16 Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | AXA-DFDF |
|---|---|
| Adapter Series | 7/16 DIN to 7/16 DIN |
| Adapter Type | Jack to Jack |
| Body Finish | Silver |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 16 Jack, Female Socket, 7 |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | 7/16 Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.2 dB |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
