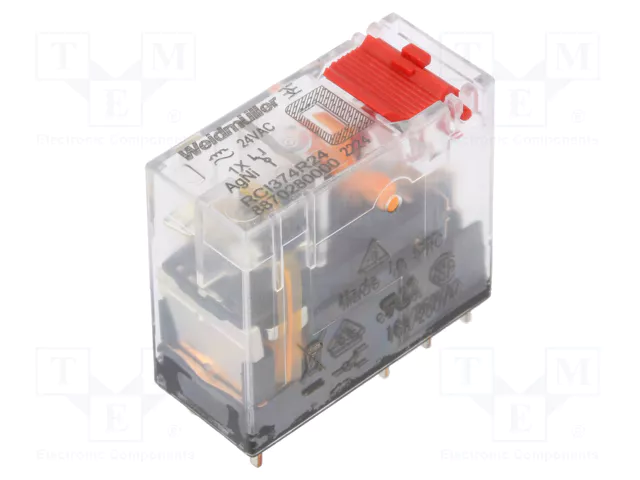

Specification	8870280000

Approval Agency	VDE, cULus, CSA
Coil Current	31.6 mA
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	C, 1, SPDT, Form
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	16 A
Features	Test Button, Lighted Indicator
Load - Max Switching (Apparent Power)	4000 VA
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	3.6 VAC
Operate Time	8 ms
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Relay Type	General Purpose
Release Time	6 ms
Switching Voltage AC (Max)	250 VAC
Termination Style	PC Pin

rci Series

Part	Contact Rating (Current)	Operating Temperature (Min)	Operating Temperature (Max)	Load - Max Switching (Apparent Power)	Approval Agency	Must Operate Voltage	Switching Voltage AC (Max)	Mounting Type	Release Time	Features	Coil Current	Operate Time	Contact Form	Coil Type	Contact Material	Termination Style	Relay Type	Coil Voltage	Must Release Voltage	Must Release Voltage Type
Weidmüller 8869990000	16 A	-40 °C	70 °C	4000 VA	CSA cULus VDE	18 VDC	250 VAC	Through Hole	6 ms	Test Button	31.6 mA	8 ms	1 C Form SPDT	Non Latching	Silver Nickel (AgNi)	PC Pin	General Purpose	24 VDC	3.6 VAC
Weidmüller 8871040000	8 A	-40 °C	70 °C	2000 VA	CE GL	18 VDC	250 VAC	DIN Rail	2 ms	Lighted Indicator Socket Included	31.6 mA	7 ms	2 2 Form C C DPDT Form	Non Latching	Silver Nickel (AgNi)	Screw Terminal	General Purpose	24 VDC	3.6 VAC
Weidmüller 8897130000	16 A	-40 °C	70 °C	4000 VA	CE GL	86.3 VAC	250 VAC	DIN Rail	3 ms	Lighted Indicator Socket Included	6.6 mA	7 ms	1 C Form SPDT	Non Latching	Silver Nickel (AgNi)	Spring Terminal	General Purpose	115 VAC	17.3 VAC
Weidmüller 8870080000	8 A	-40 °C	70 °C	2000 VA	CSA cULus VDE	172.5 VAC	250 VAC	Through Hole	4 ms	Test Button	3.2 mA	10 ms	2 2 Form C C DPDT Form	Non Latching	Silver Nickel (AgNi)	PC Pin	General Purpose	230 VDC	34.5 V	AC
Weidmüller 8870200000	8 A	-40 °C	70 °C	2000 VA	CSA cULus VDE	77 VAC	250 VAC	Through Hole	4 ms	Diode Lighted Indicator	4.1 mA	10 ms	2 2 Form C C DPDT Form	Non Latching	Silver Nickel (AgNi)	PC Pin	General Purpose	110 V	11 VDC
Weidmüller 8897250000	8 A	-40 °C	70 °C	2000 VA	CE GL	86.3 VAC	250 VAC	DIN Rail	2 ms	Lighted Indicator Socket Included Varistor	6.6 mA	7 ms	2 2 Form C C DPDT Form	Non Latching	Silver Nickel (AgNi)	Spring Terminal	General Purpose	115 VAC	17.3 VAC
Weidmüller 8897200000	16 A	-40 °C	70 °C	4000 VA	CE GL	18 VDC	250 VAC	DIN Rail	3 ms	Lighted Indicator Socket Included Varistor	31.6 mA	7 ms	1 C Form SPDT	Non Latching	Silver Nickel (AgNi)	Spring Terminal	General Purpose	24 VDC	3.6 VAC
Weidmüller 8870190000	8 A	-40 °C	70 °C	2000 VA	CSA cULus VDE	33.6 VAC	250 VAC	Through Hole	4 ms	Diode Lighted Indicator	8.7 mA	10 ms	2 2 Form C C DPDT Form	Non Latching	Silver Nickel (AgNi)	PC Pin	General Purpose	48 V	4.8 VAC
Weidmüller 8870120000	16 A	-40 °C	70 °C	4000 VA	CSA cULus VDE	77 VAC	250 VAC	Through Hole	6 ms	Diode Lighted Indicator	4.1 mA	8 ms	1 C Form SPDT	Non Latching	Silver Nickel (AgNi)	PC Pin	General Purpose	110 V	11 VDC
Weidmüller 8897230000	8 A	-40 °C	70 °C	2000 VA	CE GL	16.8 VDC	250 VAC	DIN Rail	2 ms	Lighted Indicator Socket Included Varistor	16.7 mA	7 ms	2 2 Form C C DPDT Form	Non Latching	Silver Nickel (AgNi)	Spring Terminal	General Purpose	24 VDC	2.4 V
